Higher Productivity
A larger welding area (220mm x 220mm) supports multi-track film feed systems and multi-station fixtures.
Shorter cycle times: Leveraging advanced motion control systems and advanced PR recognition modes.
Better Performance

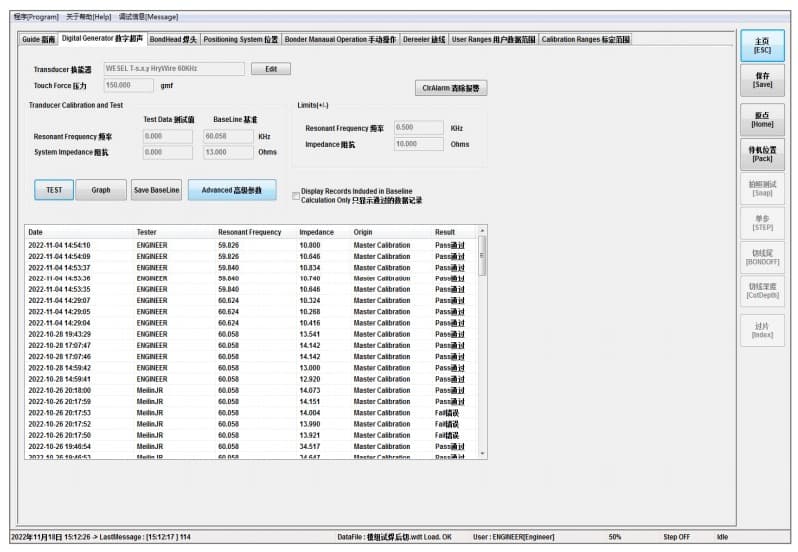

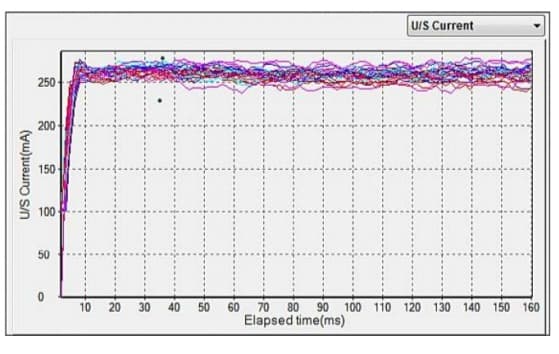

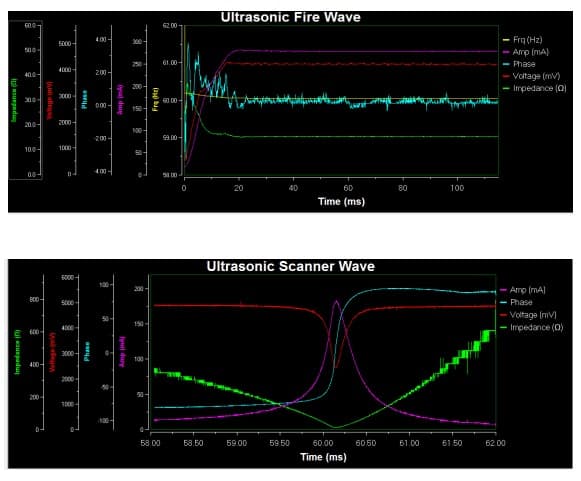

An imported, fully digital ultrasonic generator system tracks the ultrasonic curve for each weld in real time.

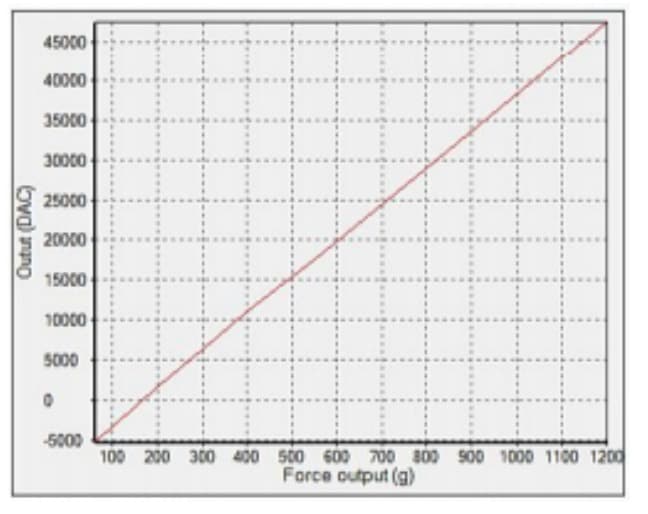

A voice-coil-driven clamp provides adjustable and controllable clamping force with minimal error.
A high-speed, fine-tuned cutter pusher with a ceramic oscillator and electronically adjustable wire tail length accommodates small weld areas (this feature is not available with post-cutting systems).
An imported, fully digital pressure control system with up to 16-bit precision and an adaptive filter to prevent signal interference.

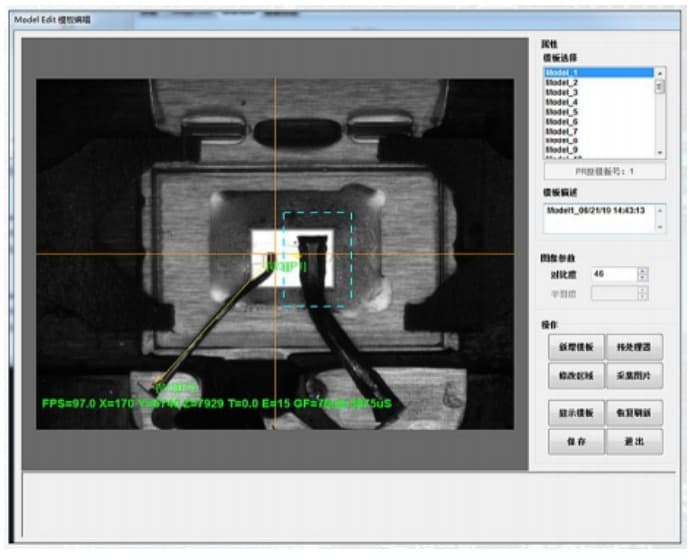

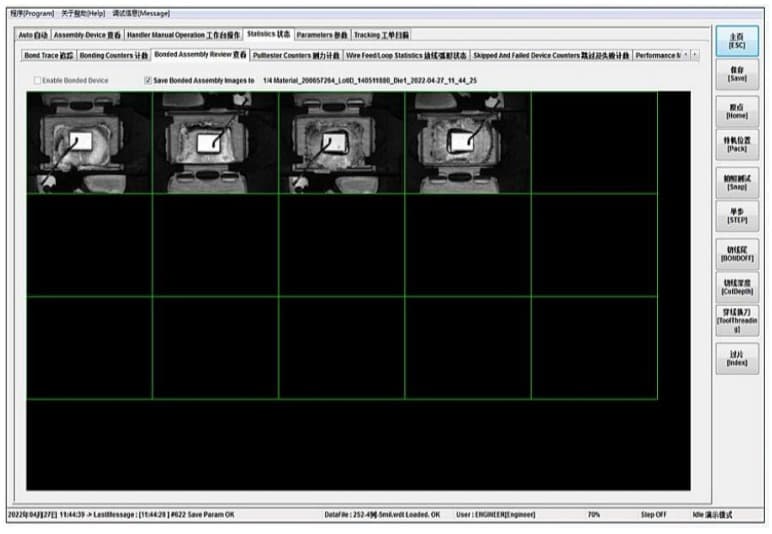

Using industry-leading image processing and counting, the system achieves sub-pixel accuracy.
Advanced Features

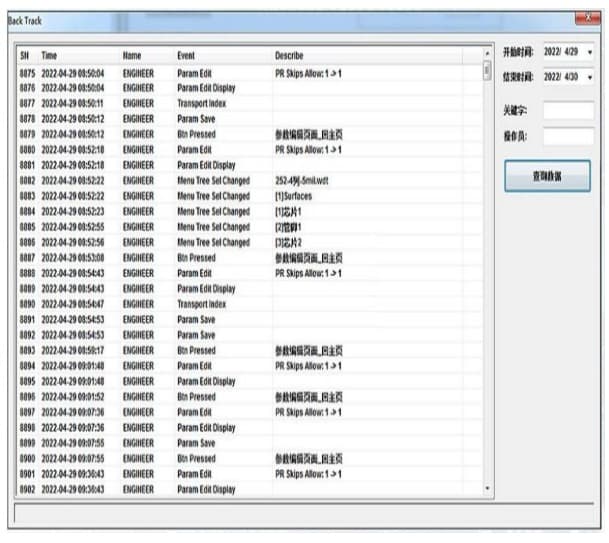

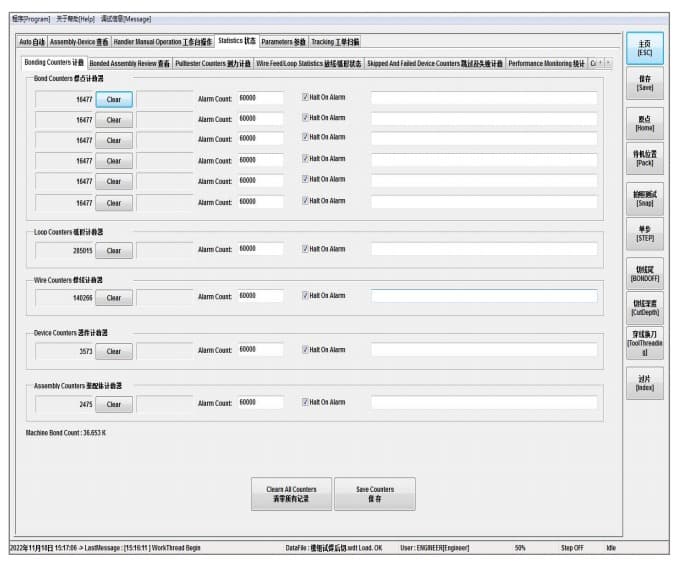

High-speed communication system: Provides command data transmission and traceability;

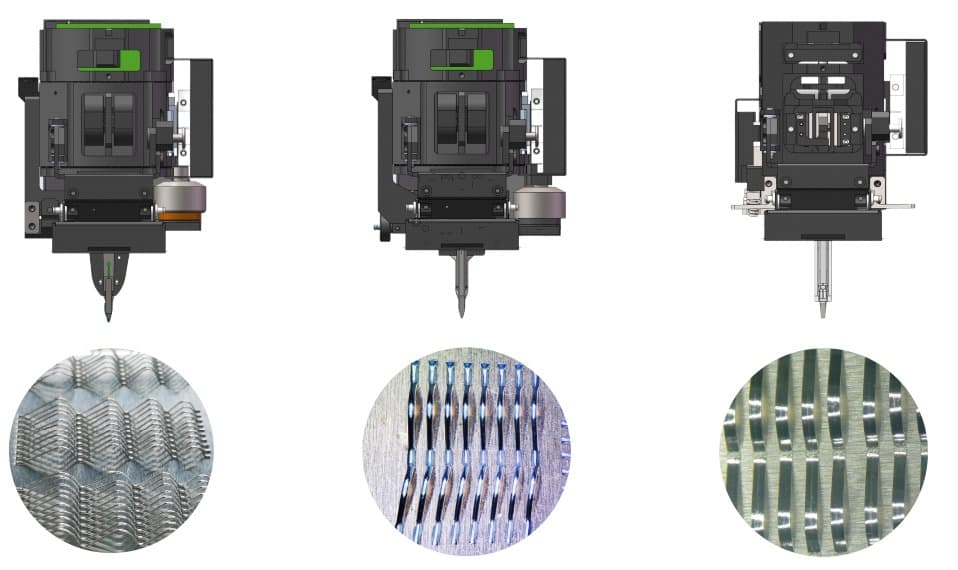

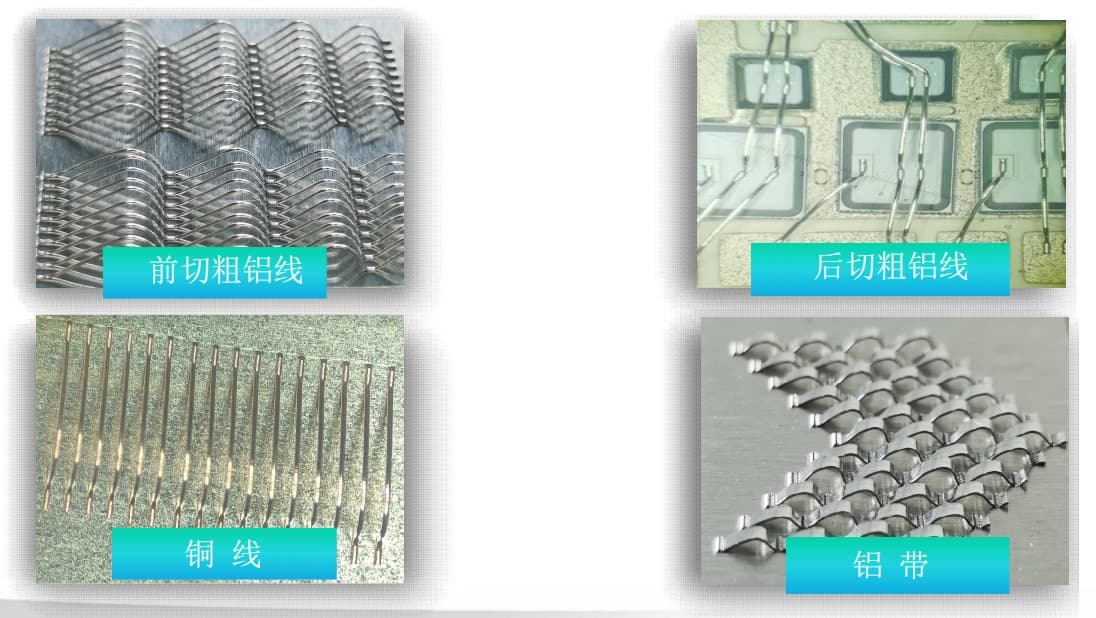

Advanced interconnect interface: Supports configurable welding heads (copper wire, aluminum wire, and aluminum ribbon);
Easy to use

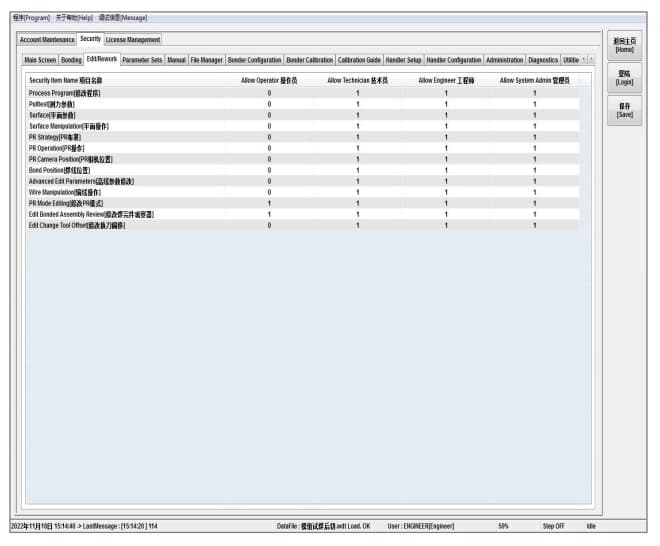

English and Chinese user interface (Windows 7 OS);
Easy access to consumables: Standard market specifications make it easy to purchase consumables such as splitters and cutters;
Simple data integration: Optional automated production line connection interface allows for data exchange and integration into the overall production process;

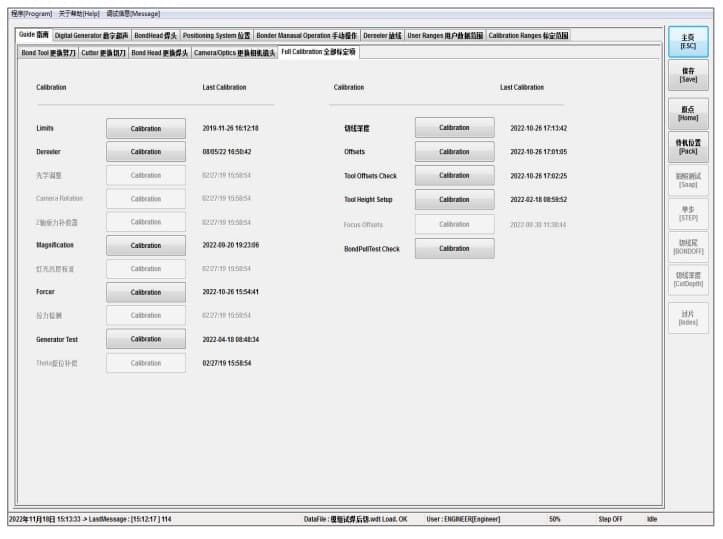

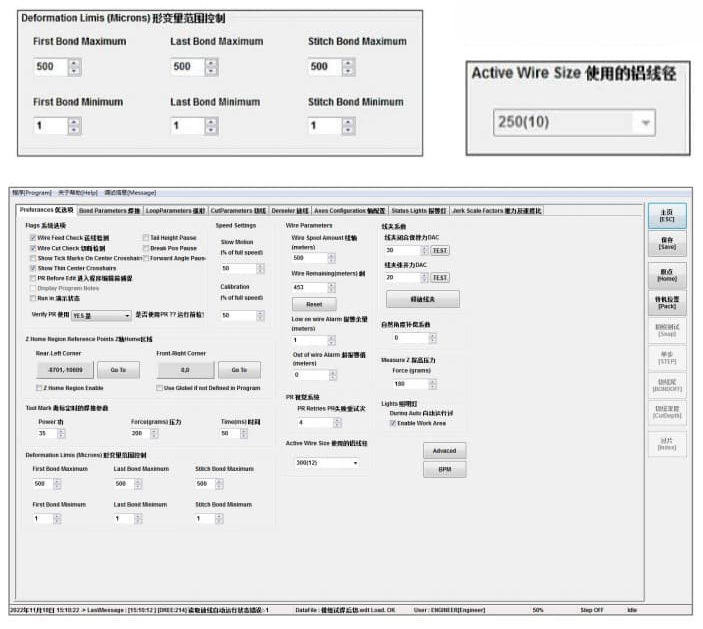

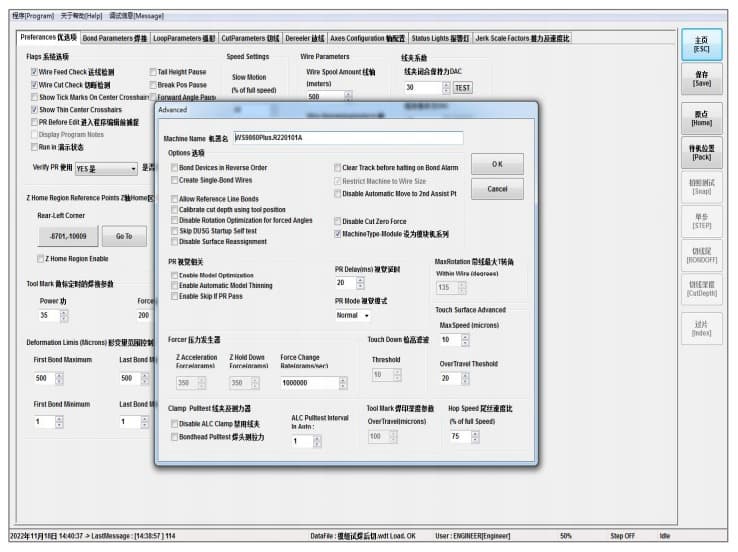

Graphical editing interface: Provides convenient programming and improves program editing efficiency.
Flexible Configuration
Key mechanical and electrical components utilize imported components, but domestic substitution is possible in special circumstances;
Optional coaxial and side lighting options enable identification of various specialized chips;
Multi-device and multi-track processing configurations are available;
A wide selection of configurable welding heads can meet specific needs.
Higher reliability
The customizable worktable offers a variety of clamping methods, including pneumatic, vacuum, and electric, as well as a variety of clamping plate combinations.
Lower operating costs
The large mating area (220mm x 220mm) reduces integration costs.
The use of high-quality components reduces preventative maintenance costs.
