LV-HX Series Automatic Winding Machine

Automatic Winding Machine Characteristics 1.Double-sided removal of metal layer with double-sided metallization film. 2.With the function of outsourcing and insertion, it can effectively solve the capacitance appearance problems such as safety film, high square resistance, super-thin film,...

Submit request

Description

marker

Automatic Winding Machine Characteristics

1.Double-sided removal of metal layer with double-sided metallization film.

2.With the function of outsourcing and insertion, it can effectively solve the capacitance appearance problems such as safety film, high square resistance, super-thin film, save metal film and improve product performance.

3.This machine adopts Siemens enhanced Smart PLC and touch screencontrol, with capacity calculation, parameter storage, data reading functions, to achieve intelligent operation.

4.The internal and external washing can be adjusted to shorten the length,

save materials and improve efficiency.

5.Air guide mechanism can be added according to product requirements to effectively prevent material deviation and improve quality.

6.The machine can choose to add explosion-proof film cleaning mechanism according to product requirements.

7.Integral rack and main winding mechanism can improve the seismic resistance and ensure the accuracy and durability of the equipment.

8.Translational staggered edge adjusting mechanism ensures the accuracy of the tray after moving, and the operation is convenient.

9.Integrative internal and external seal assembly structure, stable movement, convenient operation; accessories and traditional machine interchangeable, easy to maintain and greatly reduce costs.

Technical Parameters of LV-HX Series Equipment

类别 category	项目 project		HX150L	HX170		HX170BL
用膜尺寸 Film size	双卷材料宽度 Width of double roll material	mm	25-75	30-85		30-85
	单卷材料宽度（选配） Width of single roll material (optional)	mm	80-150	90-150		90-150
	金属薄膜材料厚度 Thickness of Metal Film Material	μm	4月12日
	外包光膜厚度 Thickness of cover film	μm	12月25日
	金属薄膜用卷内/外径 Inner/Outer Diameter of Coil for Metal Film	mm	75/350
	外包光膜用卷内/外径 Inner/Outer Diameter of cover Film	mm	75-250
	铝箔厚度 Aluminum foil thickness	μm	15-25
	铝箔宽度 Aluminum foil width	mm	200	210		210
	铝箔内/外径 Inner/Outer Diameter of Aluminum Foil	mm	40/160
芯子尺寸 Core size	标准六角芯棒外径 Standard hexagonal mandrel outer diameter	mm	9
	最大六角芯棒外径 Maximum hexagonal mandrel diameter	mm	19/28
	标准卷针六角对边 Hexagonal diagonal side of standard roll needle	mm	5
	最大卷针六角对边 Hexagonal diagonal side of maximum needle coiling	mm	9/13（选配）
	芯子外径 Core diameter	mm	20-95	25-95		25-150
设备基本参数 Basic parameters of equipment	材料挂轴 Material hanging shaft	PC	6
	主卷最高速度 Maximum speed of main volume		转速度10000rpm；线速度15000mm/s
	张力范围 Tension range	g	50-1500	60-1500		80-1500
	压力范围 Pressure range	g	1000-12000
	设备尺寸（长x宽x高） Equipment dimensions (L x W xH)	mm	1880x1960x22502390x1960x2250
	设备净重 Net weight of equipment	kg	2100		2600
	气源 Gas source	Mpa	0.5-0.6
	电源 Power Supply		AC 220V ±10% 50Hz 4.5Kw

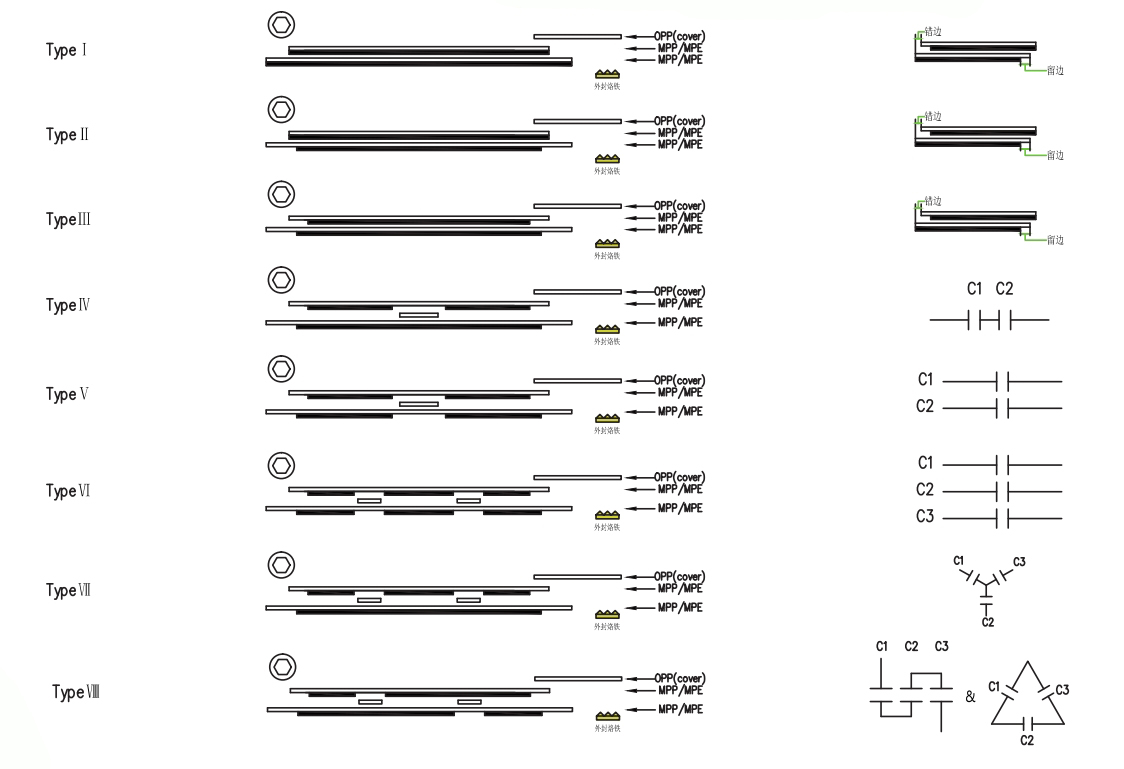

Drawing of Winding Range

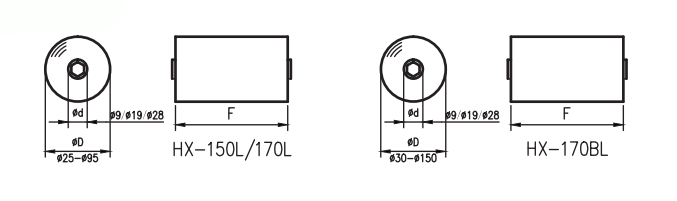

Drawing of Winding Structure

LV-HX Series Automatic Winding Machine 1
