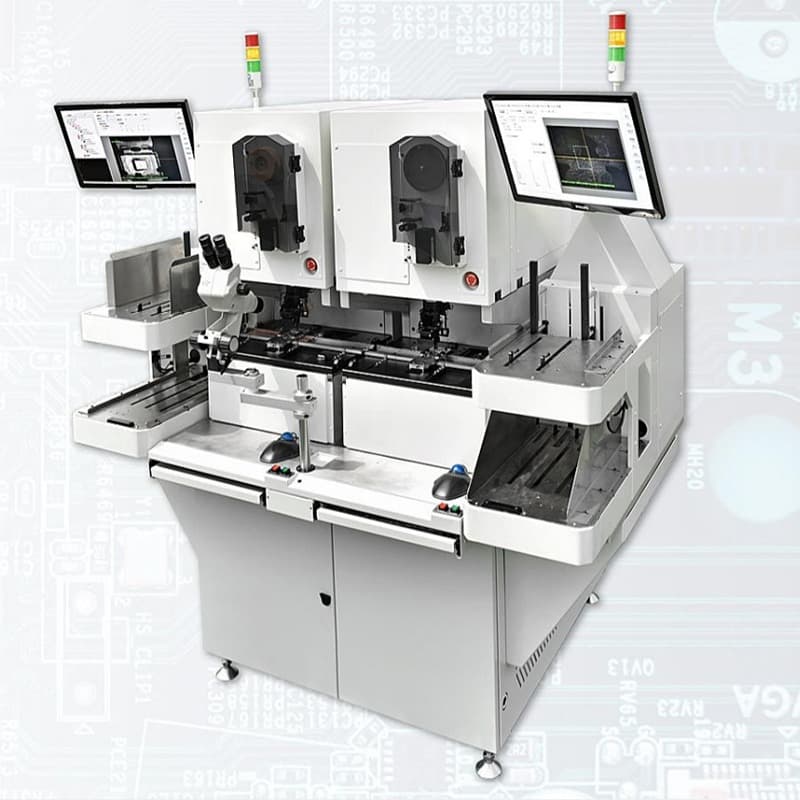

WS9820 Automatic Thick Aluminum Wire Wedge Bonder

1. A fully digital ultrasonic control system using imported technology enables real-time tracking of the USG curve for each solder joint.
2. Utilizing German image processing technology, it achieves sub-pixel accuracy.
3. The highly compatible worktable is driven by a linear motor, using a grating scale for positioning and a voice coil for hooking, ensuring high-precision feeding.
4. A fully digital pressure control system using imported technology provides up to 16-bit precision pressure control and an adaptive filter to prevent interference.
5. The customizable worktable accommodates high-precision frames for various single-row and multi-row TO, SOT, and SOD series.
6. The integrated Chinese and English user interface enables precise visual positioning, intelligent operation, and easy adjustment.

Submit request

Description

marker

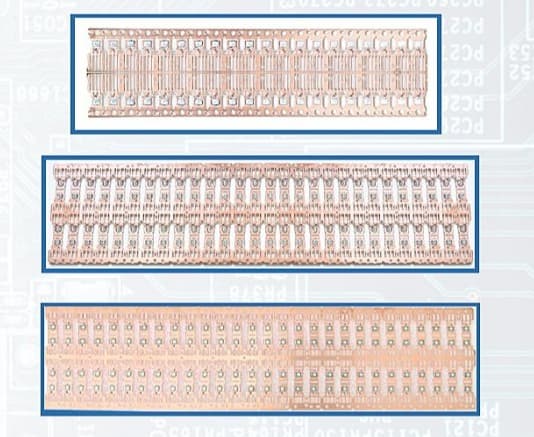

Automatic Thick Aluminum Wire Wedge Bonder Application

Suitable for silver-plated, nickel-plated and bare copper lead frames

WS9820 Aluminum Wire Wedge Bonder application

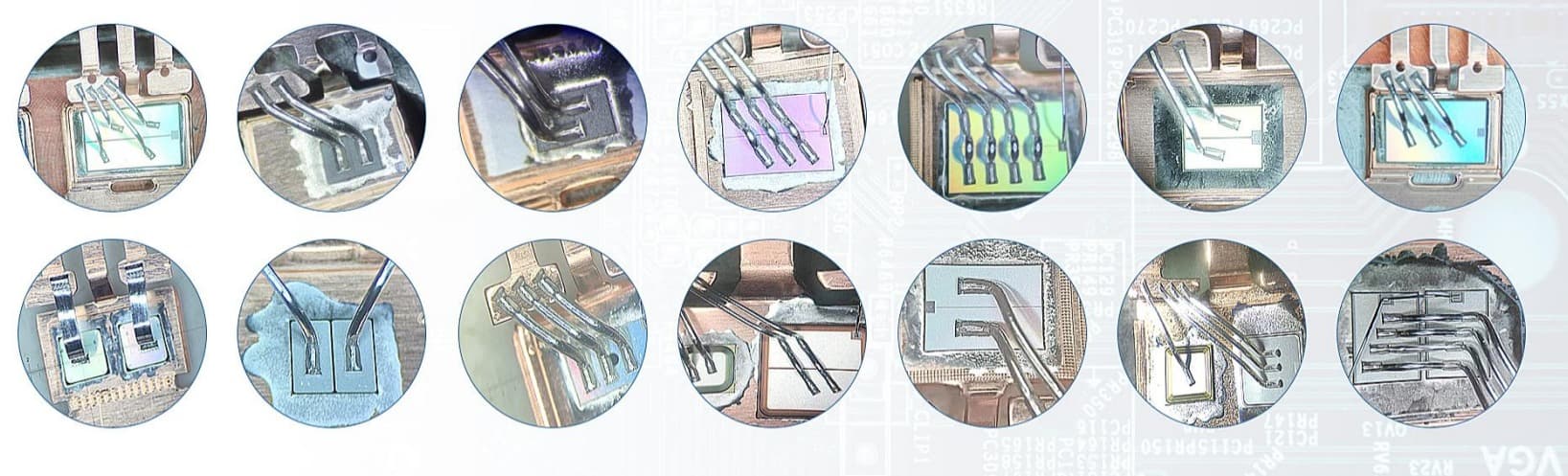

Automatic Thick Aluminum Wire Wedge Bonder Welding Experience

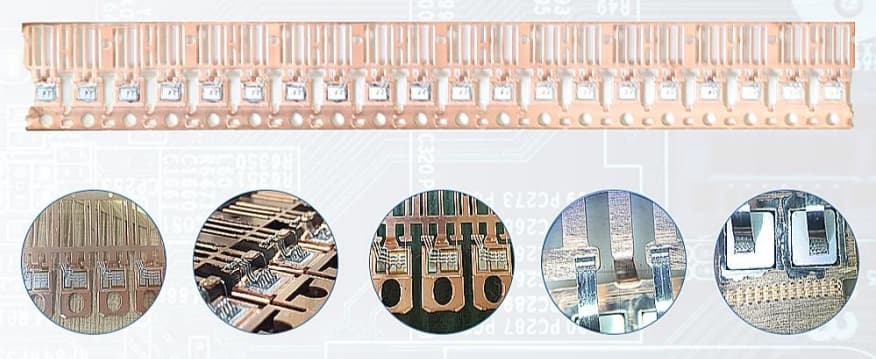

Experience welding thick aluminum wire
5-20 mil aluminum wire

Experience welding thick aluminum wire 1

Material Information			UPH
Device	Wire Diameter	Feeding Mode	WS9820
1	20milx2	Single/Double	2600
2	20milx2 stitch	Single/Double	1700
3	15milx3	Single/Double	2050
4	15milx2	Single/Double	2580
5	15milx3 stitch	Single/Double	1370
6	15milx4	Single/Double	1300

TO252,4rows			UPH
Device	Wire Diameter	Feeding Mode	WS9820
1	5milx1	Every	7000
2	10milx2	Every	3000

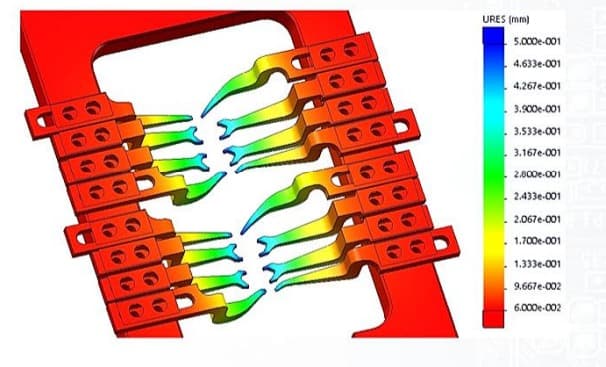

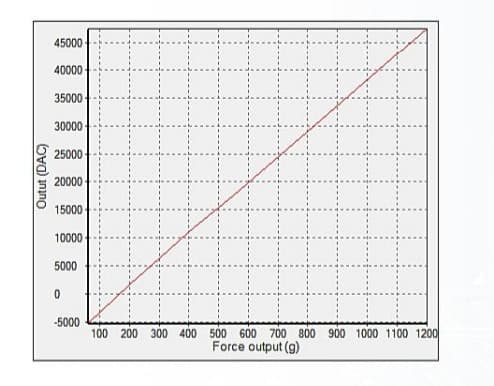

WS9820 provides "average" clamp pressure

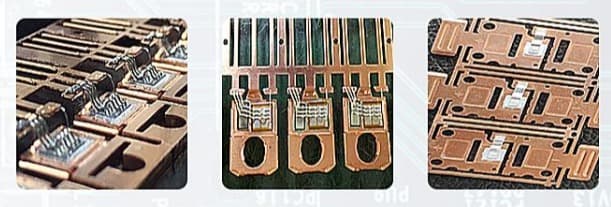

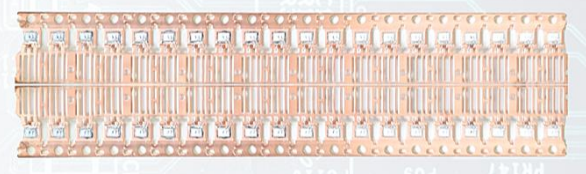

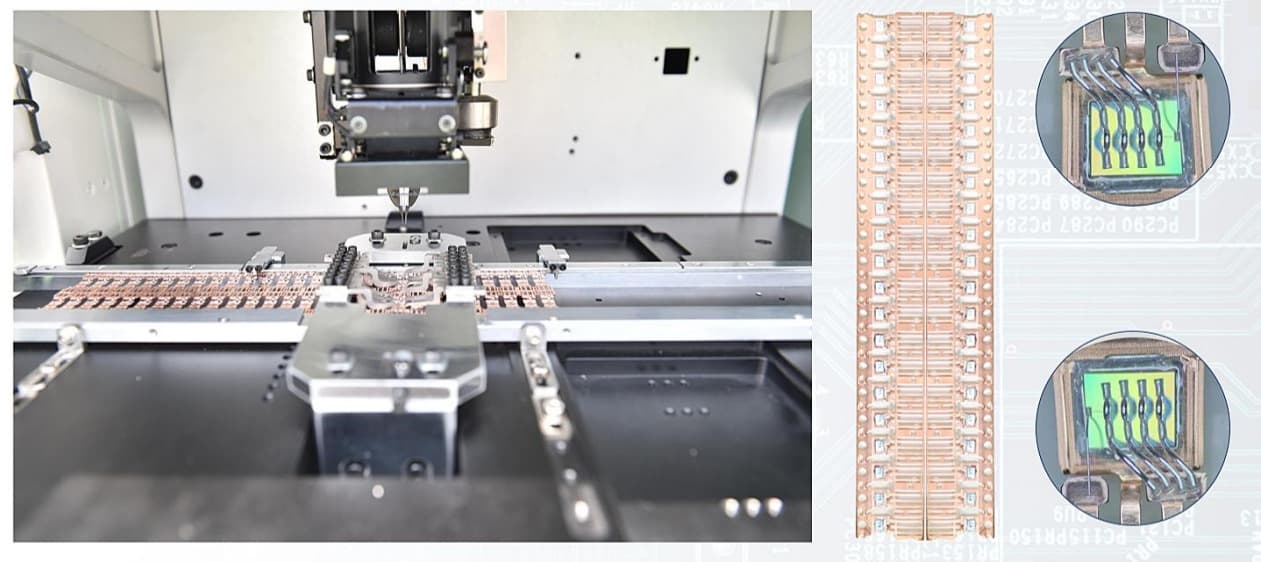

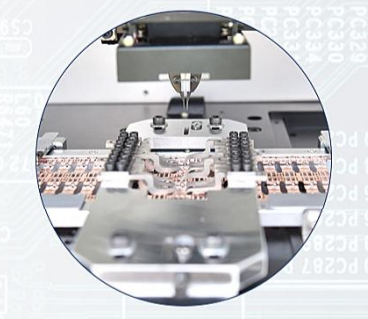

Matrix lead frame welding

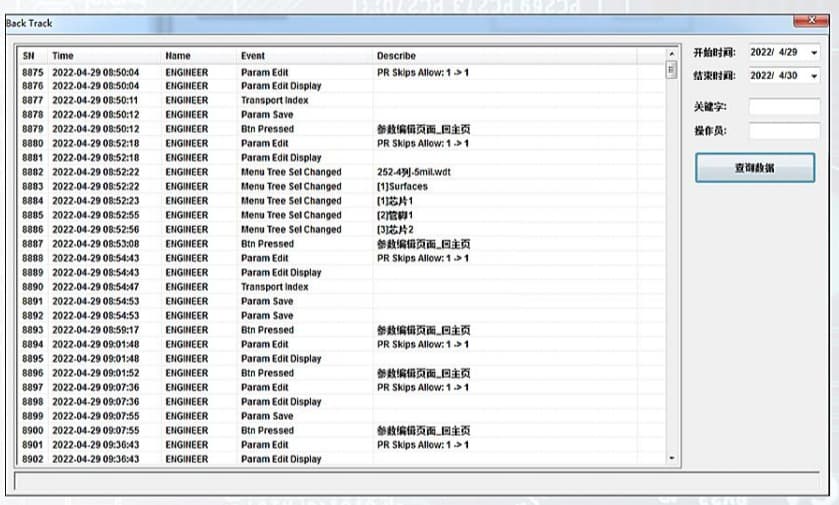

Automatic Thick Aluminum Wire Wedge Bonder Advantages

① Accuracy：Advanced tangent； pressure, and clamp control；Stable ultrasonic control
② Reliability：Intelligent welding quality monitoring (BPM) system；High monitoring sensitivity to screen out hidden defective products
③ Quality：Wire breakage detection and convenient threading system
④ Flexibility：Easy and adaptable to different product series

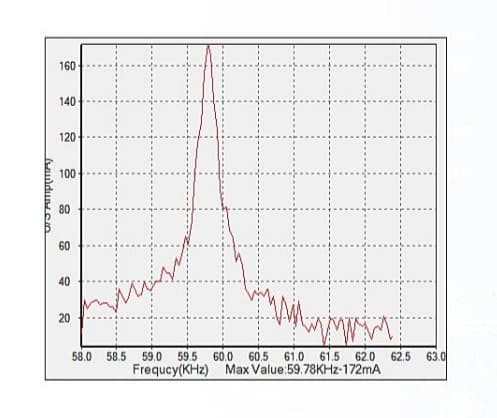

Ultrasonic system monitoring function

Automatic frequency sweep test upon startup; timely detection of ultrasonic system anomalies

Automatic Thick Aluminum Wire Wedge Bonder Advantages 1

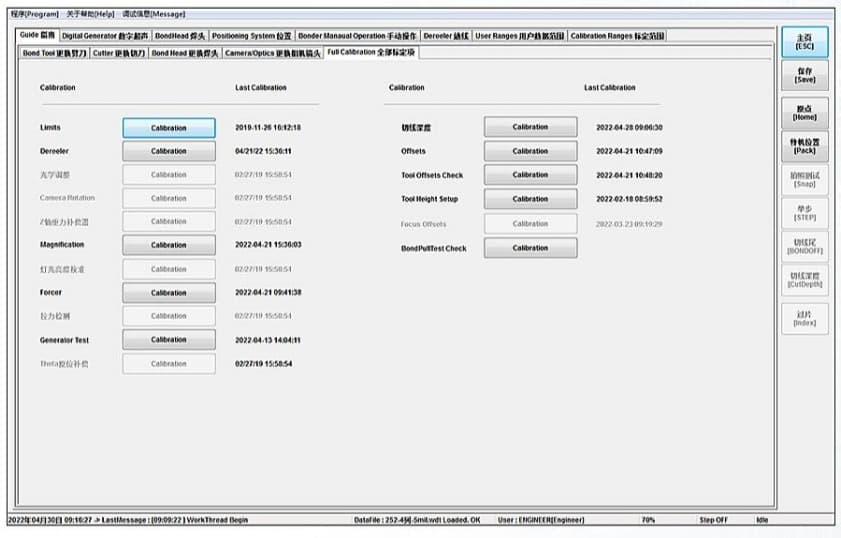

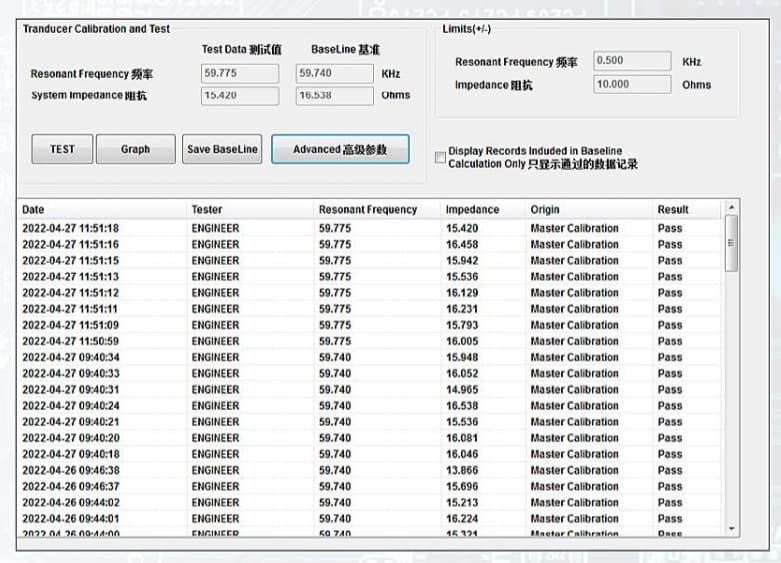

Transducer calibration and testing

Improve consistency in blade replacement; timely detection of ultrasonic system anomalies

Automatic Thick Aluminum Wire Wedge Bonder Advantages 2

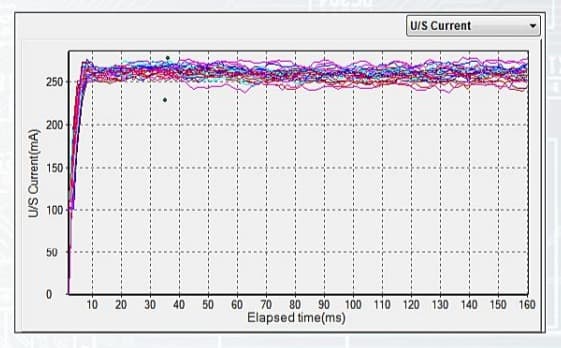

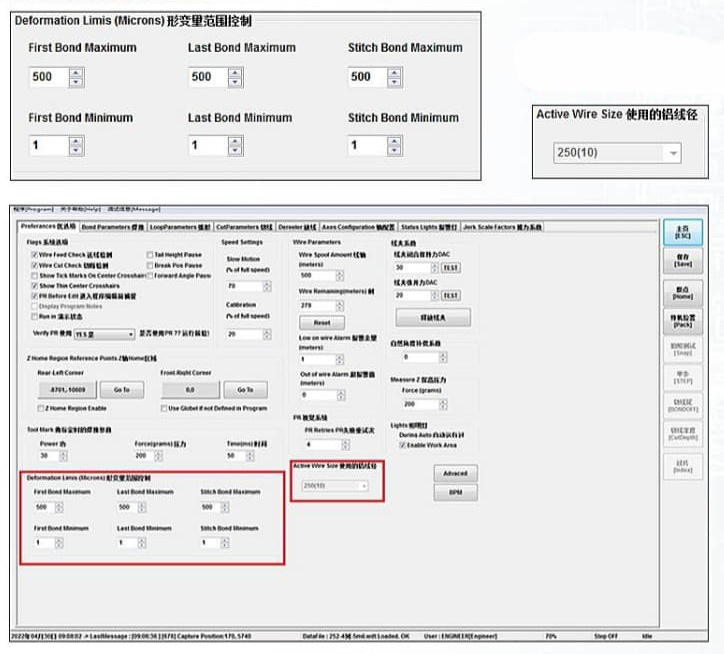

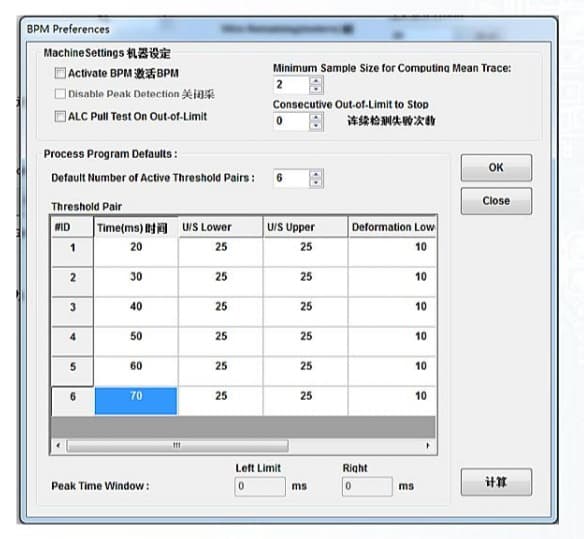

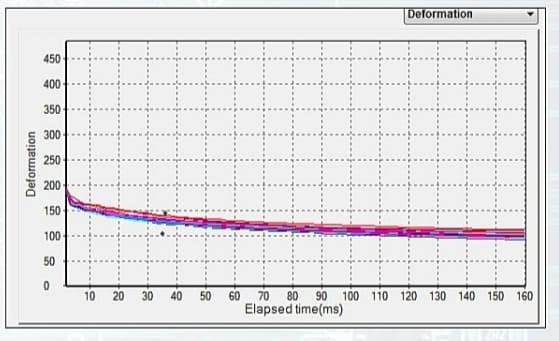

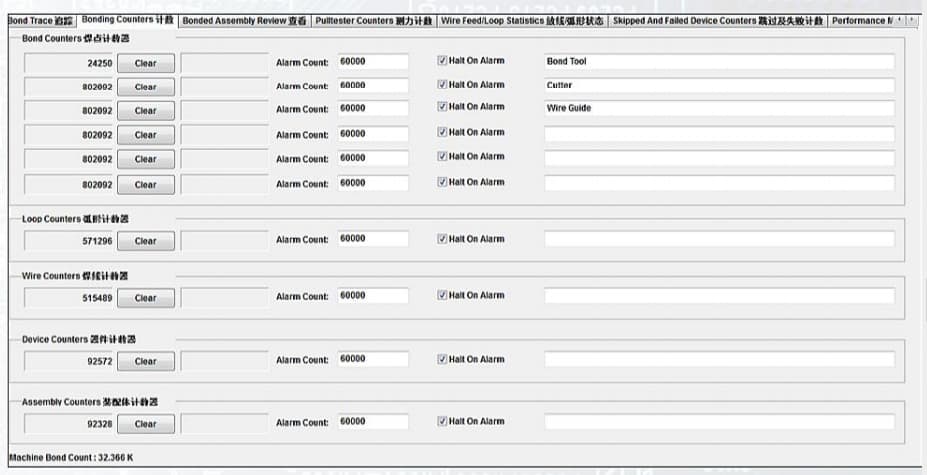

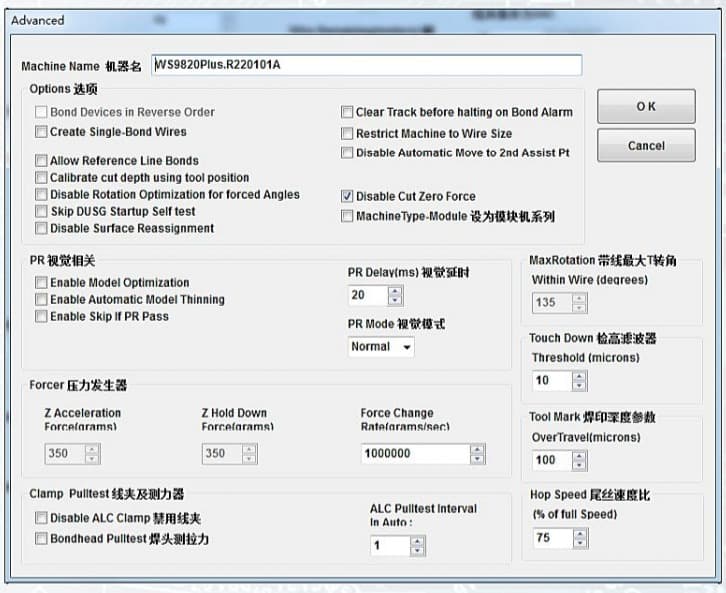

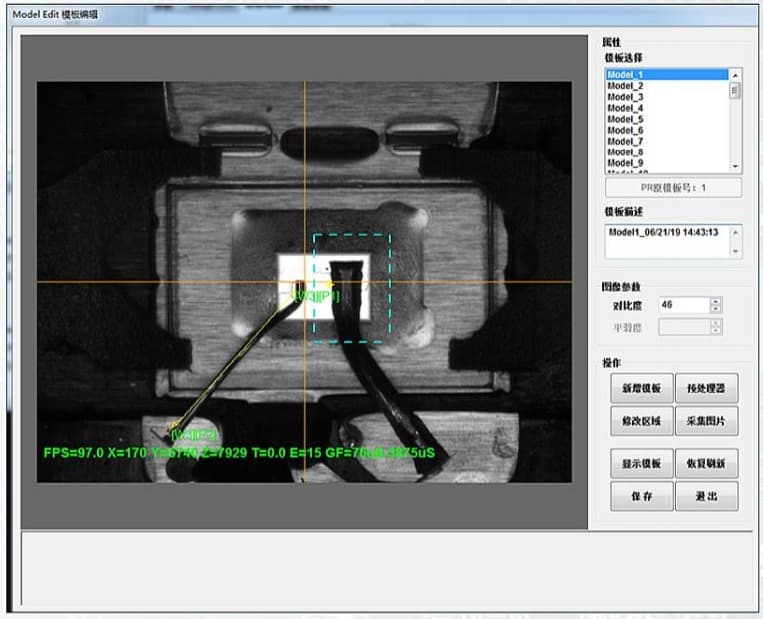

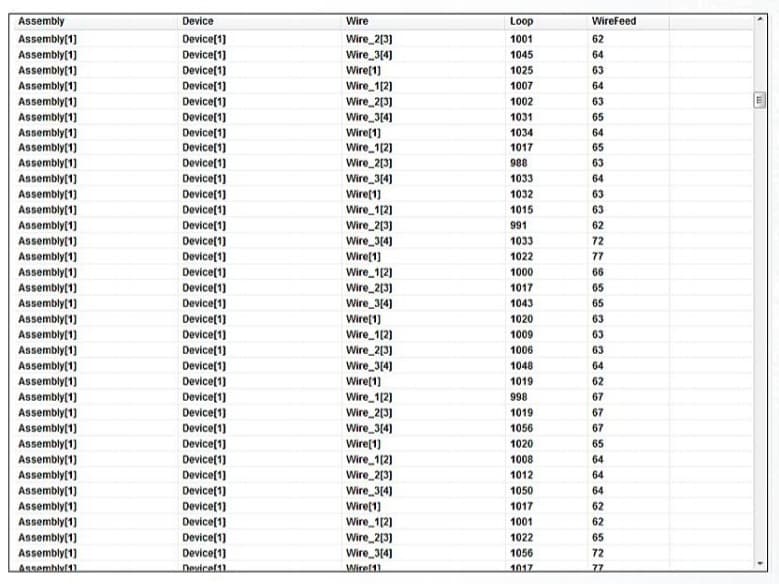

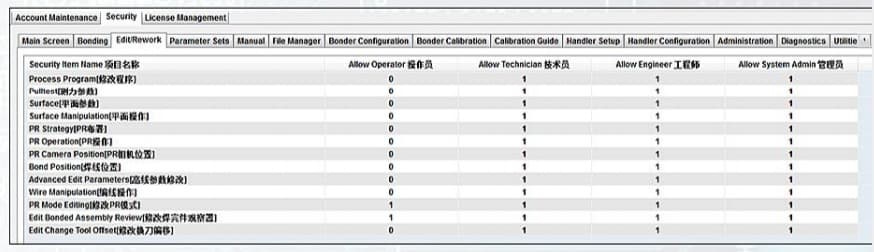

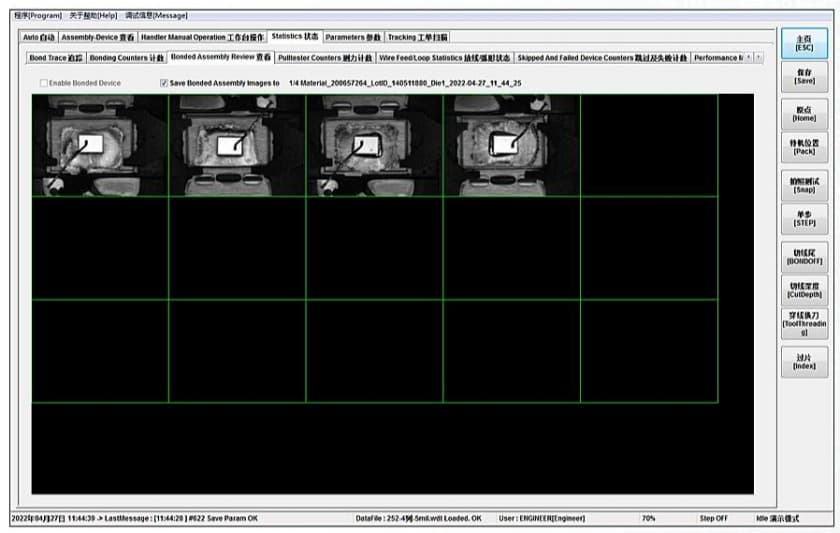

Intelligent Welding Quality Monitoring System (BPM)

Adjusts monitoring reference values based on real-time welding conditions, monitoring ultrasonic and weld deformation, and promptly screening out hidden defective products.
