LV-HV Series Automatic Winding Machine

Automatic Winding Machine Characteristics 1. This machine can effectively solve the product precision and production efficiency of hexagonal core capacitor in the range of 14-30 mm film width. 2. The machine is controlled by PLC and touch screen. It has the functions of capacity calculatio...

Submit request

Description

marker

Automatic Winding Machine Characteristics

1. This machine can effectively solve the product precision and production efficiency of hexagonal core capacitor in the range of 14-30 mm film width.
2. The machine is controlled by PLC and touch screen. It has the functions of capacity calculation, parameter storage and parameter reading to realize the humanized operation.
3. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered.
4. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process.
5. The frame of this machine is of integral structure, which can change the strength loss of multi-piece assembling, effectively improve the accuracy and durability, and greatly reduce the mechanical vibration.
6. The main reel seat of the machine adopts an integral tunneling structure to avoid the loss of accuracy and the deviation of concentricity caused by three-piece connection, and greatly improve the accuracy and stability after long-term use.
7. Use the horizontal way to avoid the undesirable phenomenon.

Technical Parameters of LV-HV Series Equipment

类别 category	项目 project		HV60L
用膜尺寸 Film size	双卷材料宽度 Width of double roll material	mm	14-30
	金属薄膜材料厚度 Thickness of Metal Film Material	μm	4月12日
	外包光膜厚度 Thickness of cover film	μm	12月25日
	金属薄膜用卷内/外径 Inner/Outer Diameter of Coil for Metal Film	mm	75/250
	外包光膜用卷内/外径 Inner/Outer Diameter of cover film	mm	75-250
	铝箔厚度 Aluminum foil thickness	μm	15-25
	铝箔宽度 Aluminum foil width	mm	70
	铝箔内/外径 Inner/Outer Diameter of Aluminum Foil	mm	40/160

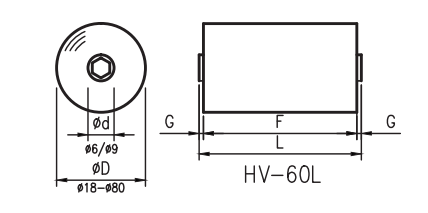

芯子尺寸 Elements size	标准六角芯棒外径 Standard hexagonal core outer diameter	mm	9
	最大六角芯棒外径 Maximum hexagonal core diameter	mm	6
	标准卷针六角对边 Hexagonal diagonal side of standard mandrels	mm	5
	可选卷针 Optional mandrels	mm	4（选配）
	芯子外径 Elements diameter	mm	18-80
设备基本参数 Basic parameters of equipment	材料挂轴 Material hanging shaft	PC	6
	主卷最高速度 Maximum speed of main volume		转速度10000rpm；线速度15000mm/s
	张力范围 Tension range	g	50-400
	压力范围 Pressure range	g	50-3000
	设备尺寸（长x宽x高） Equipment dimensions (L x W xH)	mm	1880x1960x2250
	设备净重 Net weight of equipment	kg	1800
	气源 Gas source	Mpa	0.5-0.6
	电源 Power Supply		AC 220V ±10% 50Hz 3.5Kw
