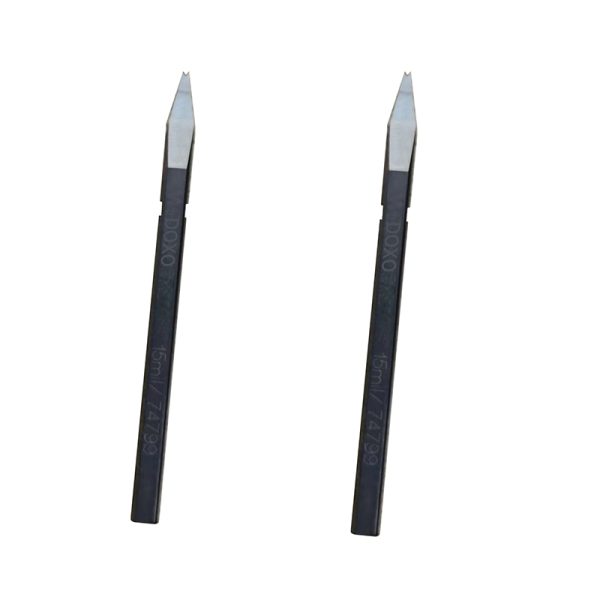

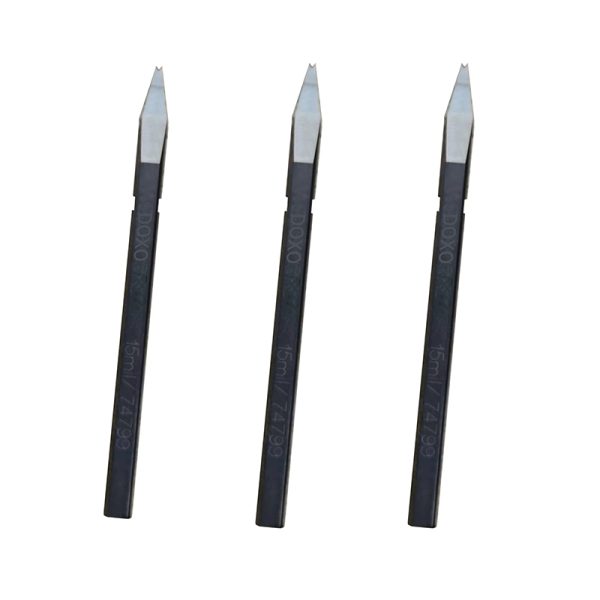

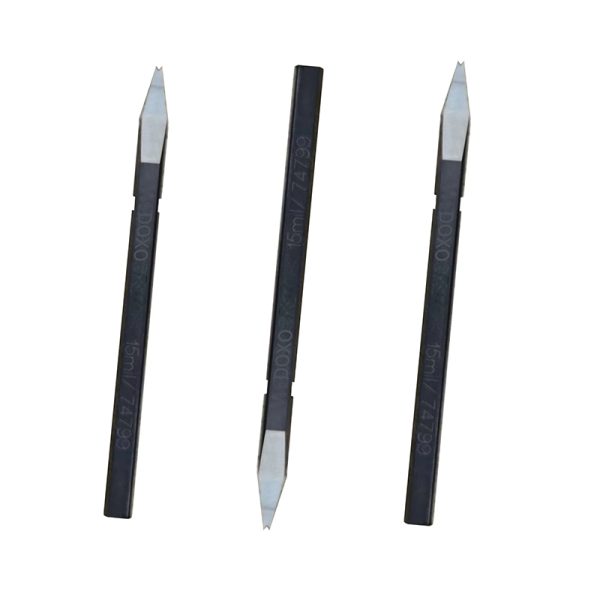

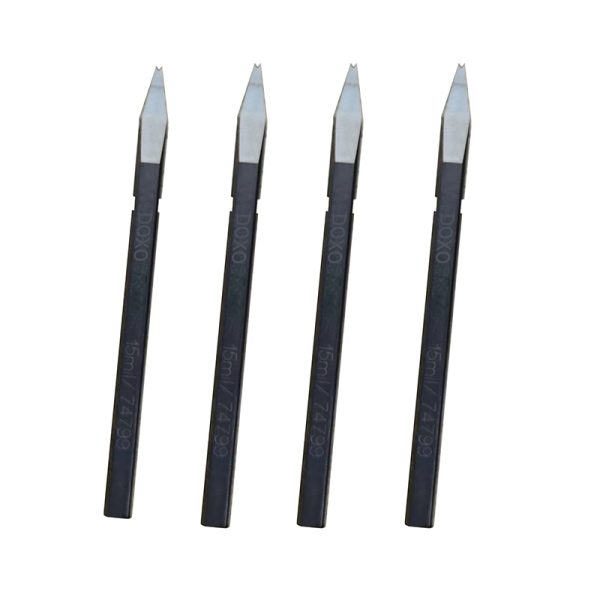

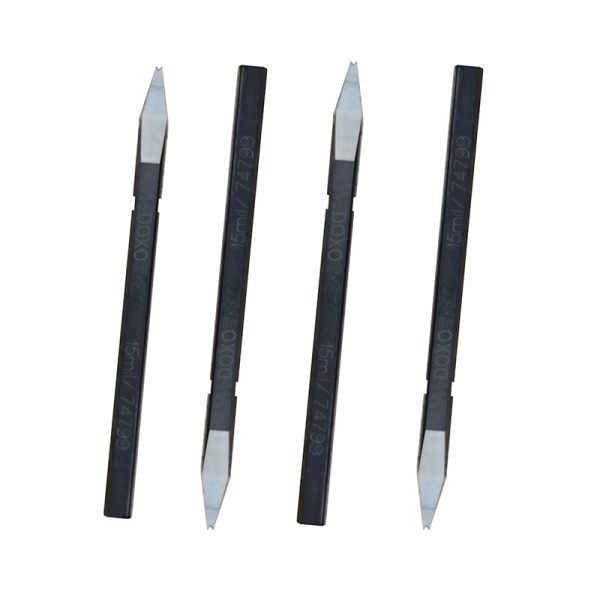

High end low price long life bonding machine consumables FK and KS heavy aluminium wire bonding tool

High end low price long life bonding machine consumables FK and KS heavy aluminium wire bonding tool

★The product is made of special imported steel ★Forging and quenching for many times to prolong life ★Customized non-standard size Product name: Wedge for aluminium wire bonding Brand: China DOXO Tolerance range: +-0.002 Series: 127153 127175 Specifications: 4mil 5mil 6mil 8mil 10mil 12mil 15m...

Submit request

Description

marker

★The product is made of special imported steel

★Forging and quenching for many times to prolong life

★Customized non-standard size

Product name: Wedge for aluminium wire bonding

Brand: China DOXO

Tolerance range: +-0.002

Series: 127153 127175

Specifications: 4mil 5mil 6mil 8mil 10mil 12mil 15mil 20mil

Function: Semiconductor aluminum wire welding equipment

Support: customized processing

Material: Tungsten Carbide

Scope of application: automotive electronics IGBT triode diode

Product advantages: high hardness, high grinding, long life, improve product yield, 1.2 million times

Specifications	Applicable wire diameter (mil)	A(±0.01) (mm)	B(±0.01) (mm)	C(±0.01) (mm)	D(±0.01) (mm)
153-4/175-4	4	0.12	0.20	0.07	0.29/0.25
153-5/175-5	5	0.16	0.28	0.09	0.39/0.28
153-6/175-6	6	0.17	0.30	0.10	0.46/0.3
153-8/175-8	8	0.23	0.40	0.15	0.71/038
153-10/175-10	10	0.31	0.50	0.19	0.64/0.48
153-12/175-12	12	0.37	0.61	0.23	0.91/0.58
153-15/175-15	15	0.47	0.76	0.29	1.07/0.73
153-20/175-20	20	0.62	1.02	0.38	1.42/0.96

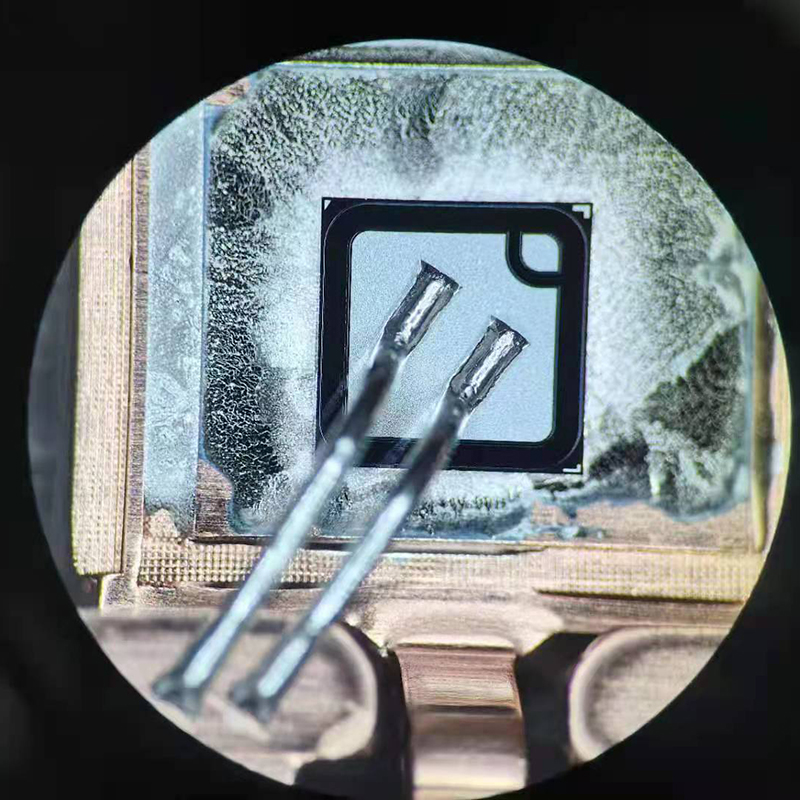

semiconductor-aluminum-wire-welding-equipment

semiconductor-aluminum-wire-welding-equipment2
