LV-F Series Automatic Winding Machine for Metallized Capacitors

LV-F Series Automatic Winding Machine for Metallized Capacitors

LV-F Series Automatic Winding Machine for Metallized Capacitors

Automatic Winding Machine Characteristics With the function of outsourcing and insertion, it can effectively solve the appearance problems of safety film, high square resistance, ultra-thin film and other capacitors, save metal film and improve product performance. Dual-drive structure wor...

Submit request

Description

marker

Automatic Winding Machine Characteristics

With the function of outsourcing and insertion, it can effectively solve the appearance problems of safety film, high square resistance, ultra-thin film and other capacitors, save metal film and improve product performance.

Dual-drive structure works synchronously to maximize production efficiency.

This machine adopts Siemens enhanced Smart PLC and touch screen control, with capacity calculation, parameter storage, data reading functions, to achieve intelligent operation.

Integral rack and main winding mechanism can improve seismic resistance and ensure the durability of accuracy.

Translational staggered edge adjusting mechanism ensures the accuracy of the tray after moving, and the operation is convenient.

It has the function of directional pre-flattening with core. The maximum reel can reach 20mm. It is suitable for producing circular and thin capacitors.

It has the function of automatic core connection and directional pre-flattening of core.

Servo control, pneumatic tension control and automatic tightening mechanism of one-button diaphragm disc are optional.

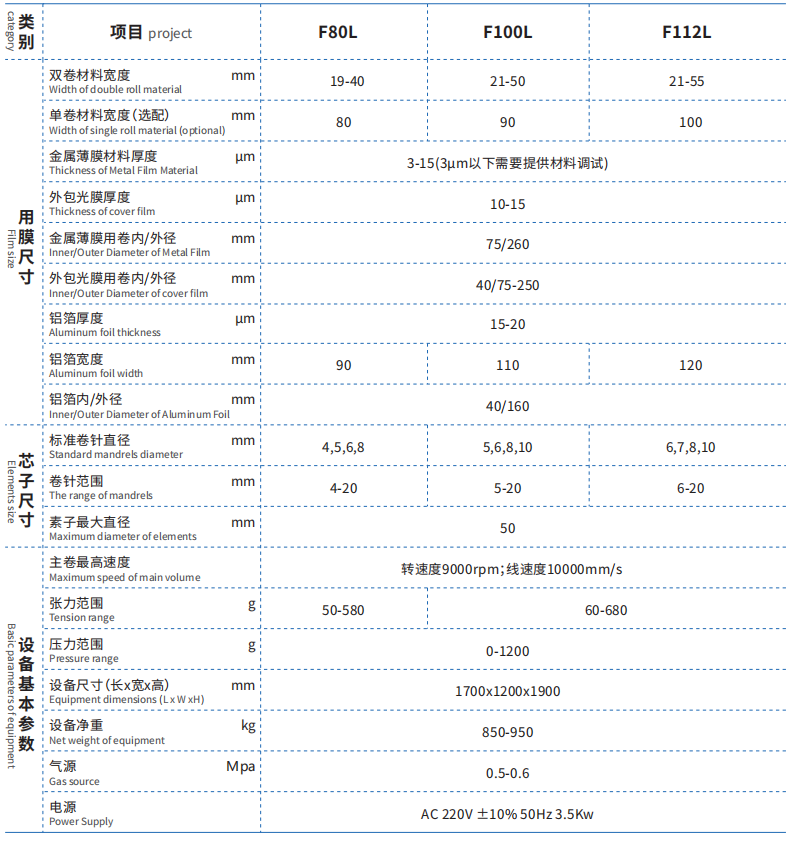

Technical Parameters of LV-F Series Equipment

类别 category	项目 project				F80L	F100L	F112L
用膜尺寸 Film size	双卷材料宽度 Width of double roll material	mm			19-40	21-50	21-55
	单卷材料宽度（选配） Width of single roll material (optional)		mm		80	90	100
	金属薄膜材料厚度 Thickness of Metal Film Material μm				3-15(3μm以下需要提供材料调试)
	外包光膜厚度μm Thickness of cover film				10月15日
	金属薄膜用卷内/外径mm Inner/Outer Diameter of Metal Film				75/260
	外包光膜用卷内/外径mm Inner/Outer Diameter of cover film				40/75-250
	铝箔厚度 Aluminum foil thickness μm				15-20
	铝箔宽度 Aluminum foil width	mm			90	110	120
	铝箔内/外径 Inner/Outer Diameter of Aluminum Foil			mm	40/160
芯子尺寸 Elements size	标准卷针直径 Standard mandrels diameter	mm			4,5,6,8	5,6,8,10	6,7,8,10
	卷针范围 The range of mandrels	mm			4月20日	5月20日	6月20日
	素子最大直径mm Maximum diameter of elements				50
设备基本参数 Basic parameters of equipment	主卷最高速度 Maximum speed of main volume				转速度9000rpm；线速度10000mm/s
	张力范围 Tension range	g			50-580	60-680
	压力范围 Pressure range	g			0-1200
	设备尺寸（长x宽x高）mm Equipment dimensions (L x W xH)				1700x1200x1900
	设备净重 Net weight of equipment	kg			850-950
	气源Mpa Gas source				0.5-0.6
	电源 Power Supply				AC 220V ±10% 50Hz 3.5Kw

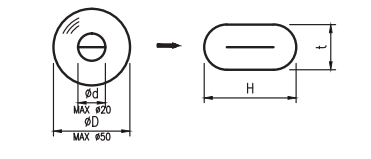

Drawing of Winding Range

LV-F

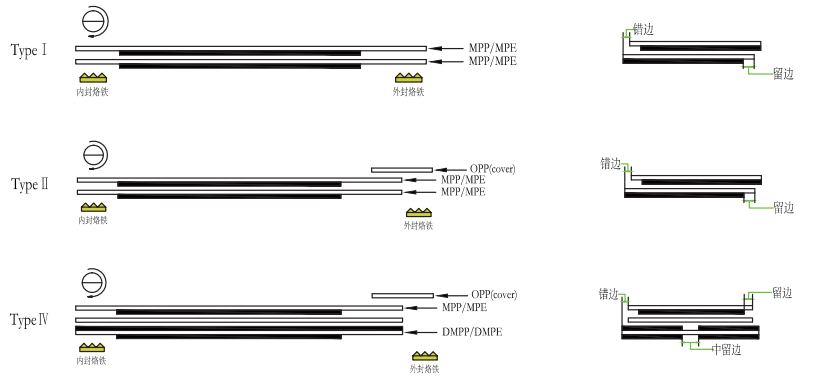

Drawing of Winding Structure
