LV-KX168D Series Automatic High Voltage Capacitor Winding Machine

LV-KX168D Series Automatic High Voltage Capacitor Winding Machine

LV-KX168D Series Automatic High Voltage Capacitor Winding Machine

1. With bilateral cleaning, outer film and inner light-sandwich film protection, the winding effect of large diameter core can be improved. The inner diameter of elements can reach 125 mm and the outer diameter can reach 168 mm. 2. It has the function of automatic tightening and automatic pre-...

Submit request

Description

marker

1. With bilateral cleaning, outer film and inner light-sandwich film protection, the winding effect of large diameter core can be improved. The inner diameter of elements can reach 125 mm and the outer diameter can reach 168 mm.
2. It has the function of automatic tightening and automatic pre-pressing of key-type film material.
3. It has the function of automatic elimination and classification of the first defective products.
4. This machine adopts PLC + touch screen control, with capacity, tension, pressure calculation, storage and reading functions.
5. The pressure of the main wheel is controlled by pneumatic double pressure wheel; the pressure of the wheel is adjustable; and the pressure is controlled by electric proportional valve.
6. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered.
7. Metallized film material axis unwinding has translation follow-up flattening roller mechanism to effectively prevent film material wrinkling; material tray movement adopts double-column guidance to improve the movement accuracy.
8. It has the function of I/O signal status display of PLC; fault alarm has visual display of fault guidance solution.
9. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process.
10. Pre-adjustment of automatic stagger position and accuracy maintenance function of optional film material.

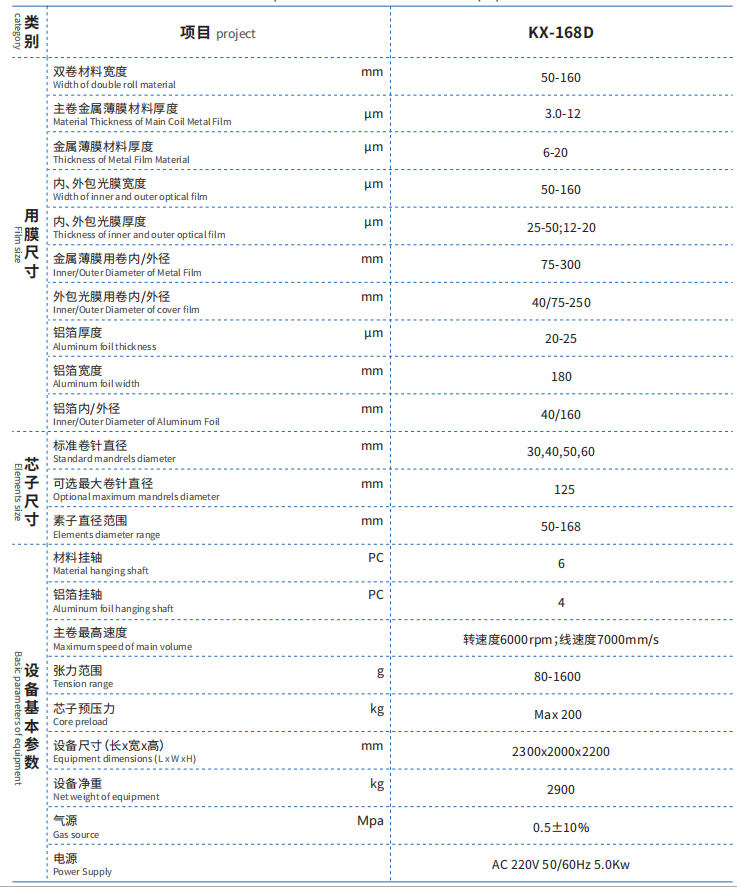

Technical Parameters of LV-KX Series Equipment

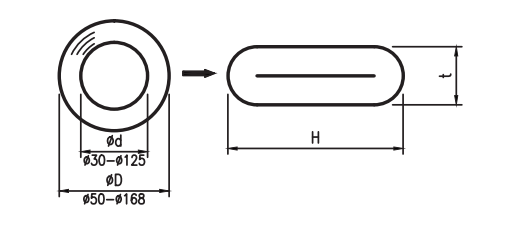

DRAWING OF WINDING RANGE

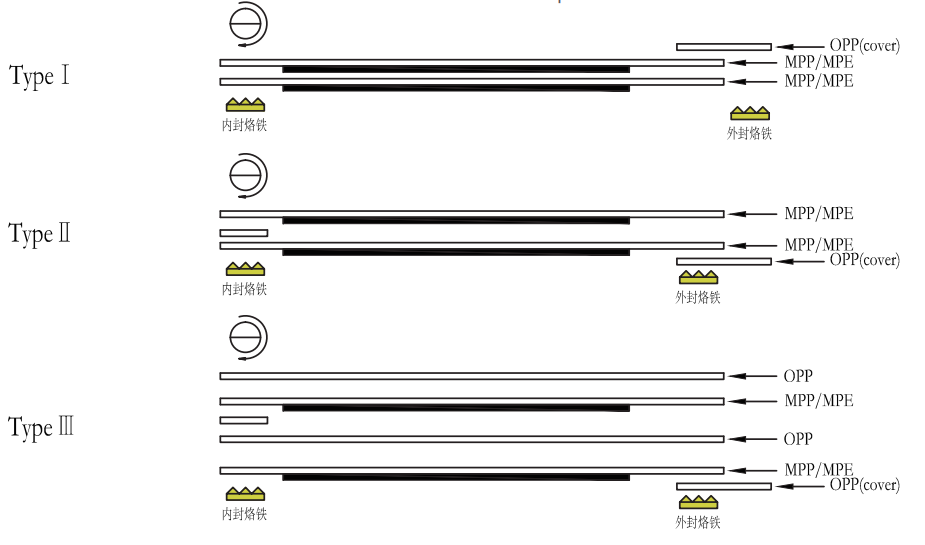

DRAWING OF WINDING STRUCTURE
