720 plastic wire guide spare parts for semiconductor aluminium wire bonding equipment (N Series)

720 plastic wire guide spare parts for semiconductor aluminium wire bonding equipment (N Series)

Product No.: DXWS-22002 Product name: WIRE GUIDE Brand: China DOXO Tolerance range: +-0.002 Specifications: 5mil 6mil 8mil 10mil 12mil 15mil 20mil Function: Semiconductor aluminum wire welding equipment material: plastic Scope of application: automotive electronics IGBT triode diode Product ad...

Submit request

Description

marker

Product No.: DXWS-22002

Product name: WIRE GUIDE

Brand: China DOXO

Tolerance range: +-0.002

Specifications: 5mil 6mil 8mil 10mil 12mil 15mil 20mil

Function: Semiconductor aluminum wire welding equipment

material: plastic

Scope of application: automotive electronics IGBT triode diode

Product advantages: high hardness, high grinding, long life, improve product yield, 1.2 million times

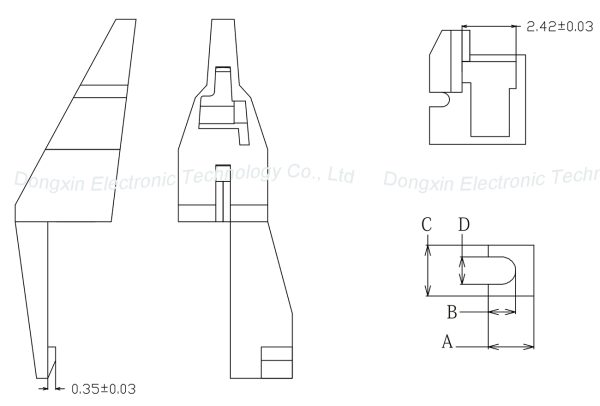

Specifications	Applicable wire diameter (mil)	Color	A(±0.01) (mm)	B(±0.01) (mm)	C(±0.01) (mm)	D(±0.01) (mm)
7200-5MIL	4,5	Dark blue	0.39	0.16	0.56	0.16
7200-6MIL	6,7	Pink	0.43	0.18	0.58	0.18
7200-8MIL	8	Green	0.45	0.24	0.64	0.24
7200-1OMIL	10	Black	0.50	0.28	0.68	0.28
7200-12MIL	12	Red	0.61	0.35	0.75	0.34
7200-15MIL	15	Yellow	0.70	0.42	0.86	0.42
7200-20	20	Light blue	0.90	0.54	1.00	0.54

Made from special modification macromolecule material.

Apply to: Orthodyne Electronics 7200HD,7600HD, 7200plus.etc wire bonders.
