LV-HDX Series Automatic Winding Machine

Automatic Winding Machine Characteristics 1. Synchronized multi-functional composite winding of optical film, metallized film and foil capacitor. 2. The needle-type cutting mechanism is used to realize the synchronous winding of aluminum foil, metal film and optical film, and the function...

Submit request

Description

marker

Automatic Winding Machine Characteristics

1. Synchronized multi-functional composite winding of optical film,
metallized film and foil capacitor.
2. The needle-type cutting mechanism is used to realize the synchronous winding of aluminum foil, metal film and optical film, and the function of folding aluminum foil can be matched.
3. Using Siemens PLC and touch screen control, with capacity calculation, parameter storage, parameter reading function, to achieve humanized operation.
4. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered.
5. Precision screw rod is used to effectively reduce the adjustment clearance, increase the adjustable locking device, adjustable clearance and prevent the displacement of the staggered edge.
6. The frame of the machine is of integral structure, which can change the lack of strength of multiple assemblies, effectively improve the accuracy and durability, and greatly reduce the mechanical vibration.
7. It has the function of secondary heat seal. The time and pressure of
primary heat seal and secondary heat seal can be set separately, which is convenient for the later process.

Technical Parameters of LV-HDX Series Equipment

类别 category	项目 project		HDX100L	HDX150BL
用膜尺寸 Film size	双卷材料宽度 Width of double roll material	mm	20-50	30-150
	金属薄膜材料厚度 Thickness of Metal Film Material	μm	4月12日
	外包光膜厚度 Thickness of cover film	μm	12月25日
	金属薄膜用卷内/外径 Inner/Outer Diameter of Coil for Metal Film	mm	75/350
	外包光膜用卷内/外径 Inner/Outer Diameter of Coil for Metal Film	mm	75-250
	铝箔厚度 Aluminum foil thickness	μm	15-25/
	铝箔宽度 Aluminum foil width	mm	110	/
	铝箔内/外径 Inner/Outer Diameter of Aluminum Foil	mm	40/160
芯子尺寸 Elements size	标准六角芯棒外径 Standard hexagonal core outer diameter	mm	9
	标准卷针六角对边 Hexagonal diagonal side of standard mandrels	mm	5
	可选六角芯棒外径 Optional hexagonal cover outer diameter	mm	9、19、28
	芯子外径 Elements diameter	mm	25-95	30-138
设备基本参数 Basic parameters of equipment	材料挂轴 Material hanging shaft	PC	5/6/7/8
	主卷最高速度 Maximum speed of main volume		转速度5000rpm；线速度9000mm/s
	张力范围 Tension range	g	50-1200
	压力范围 Pressure range	g	600-10000
	设备尺寸（长x宽x高） Equipment dimensions (L x W xH)	mm	2390x1960x2250 3300
	设备净重 Net weight of equipment	kg	2800
	气源 Gas source	Mpa	0.5-0.6
	电源 Power Supply		AC 220V ±10% 50Hz 4.5Kw

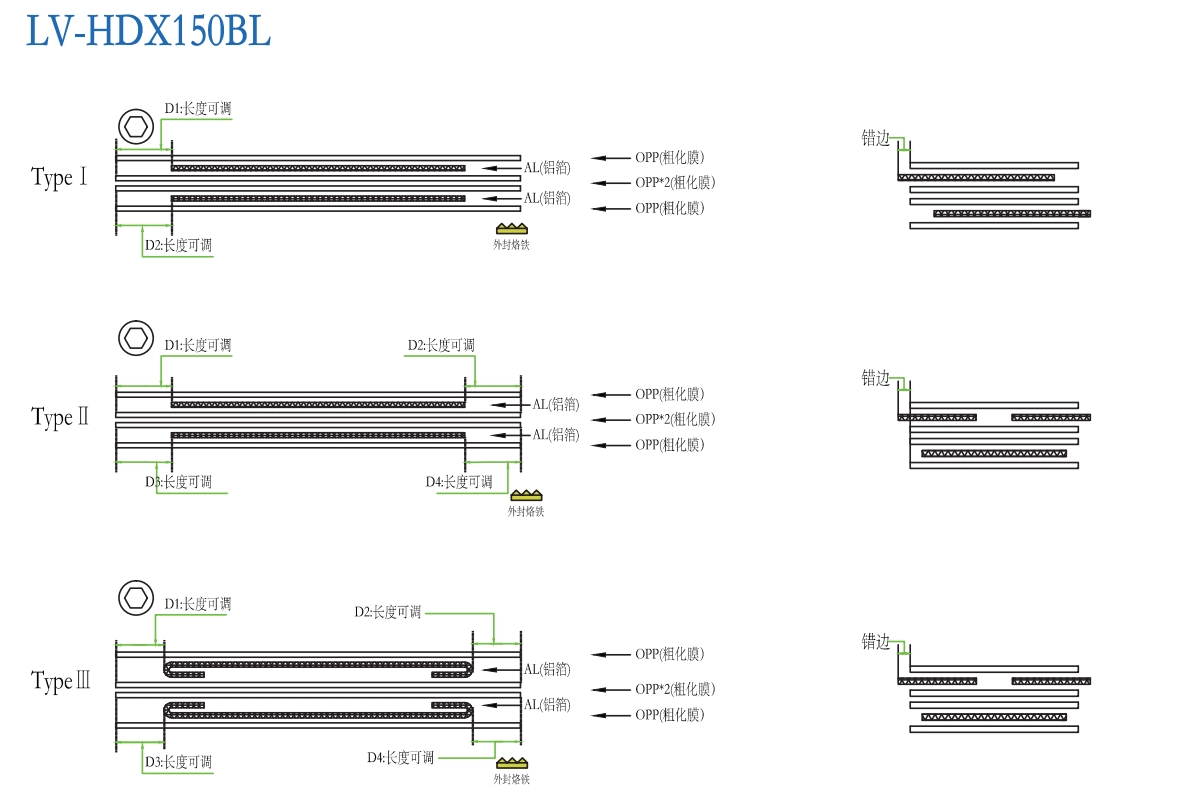

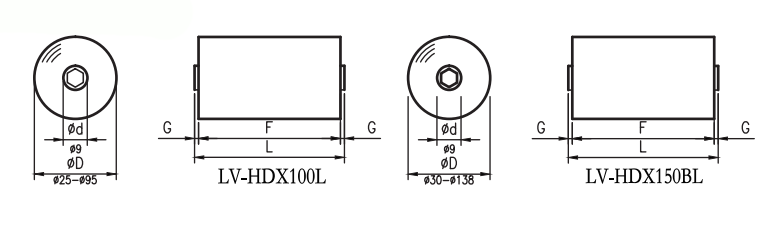

Drawing of Winding Range

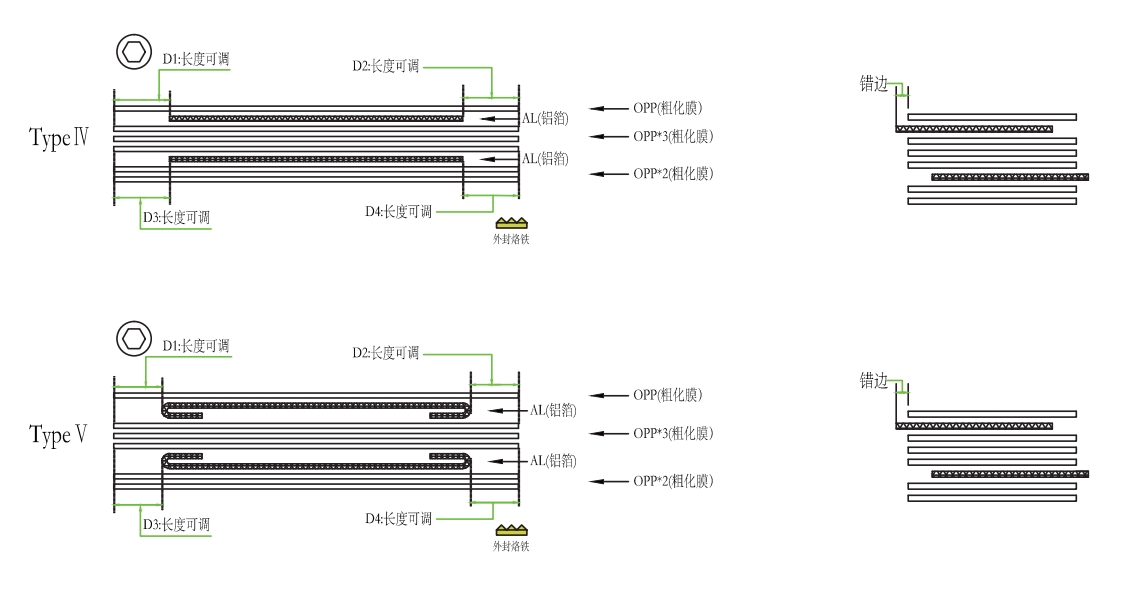

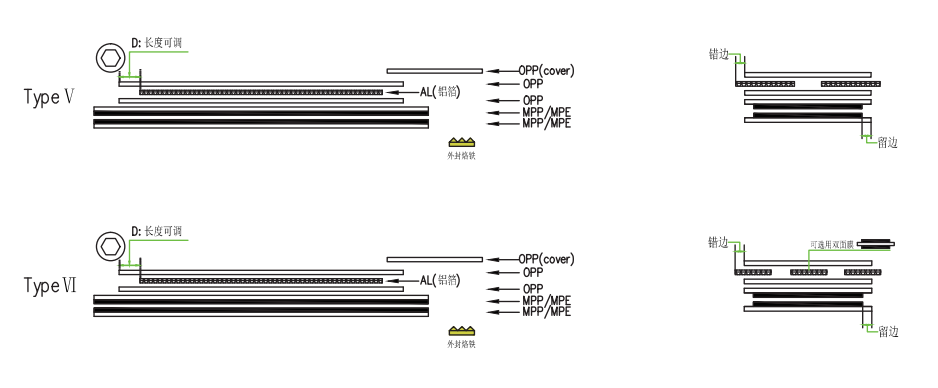

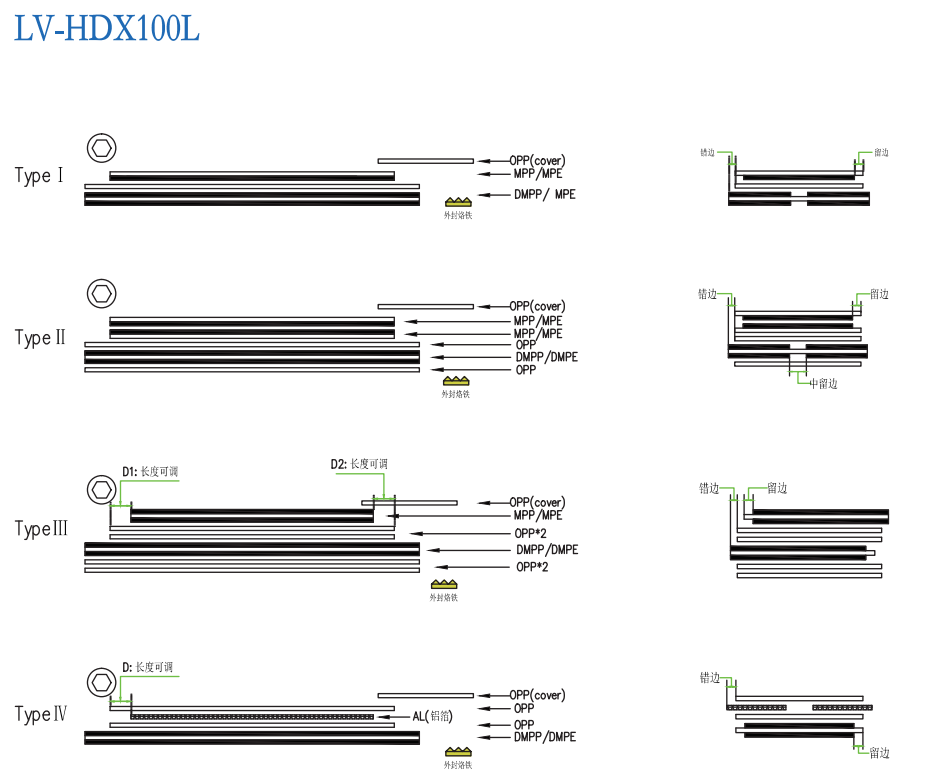

Drawing of Winding Structure

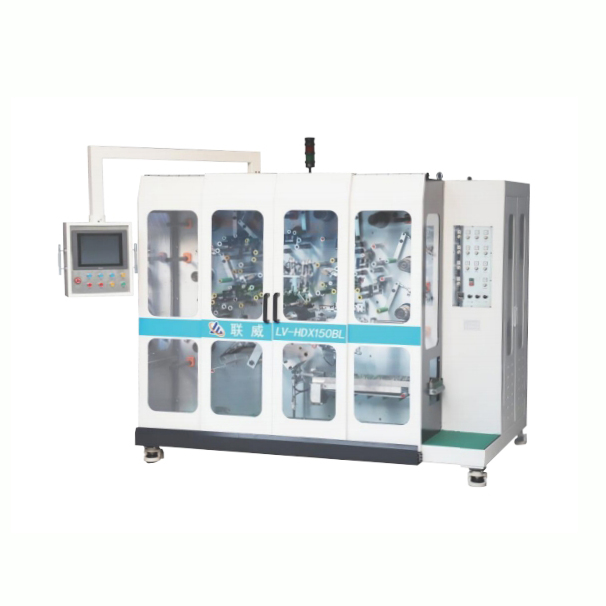

LV-HDX Series Automatic Winding Machine 2

LV-HDX Series Automatic Winding Machine 3
