LV-FX Series Automatic Winding Machine

Automatic Winding Machine Characteristics 1. With the function of outsourcing and insertion, it can effectively solve the appearance problems of safety film, high square resistance, ultra-thin film and other capacitors, save metal film and improve product performance. 2. Double-drive windi...

Submit request

Description

marker

Automatic Winding Machine Characteristics

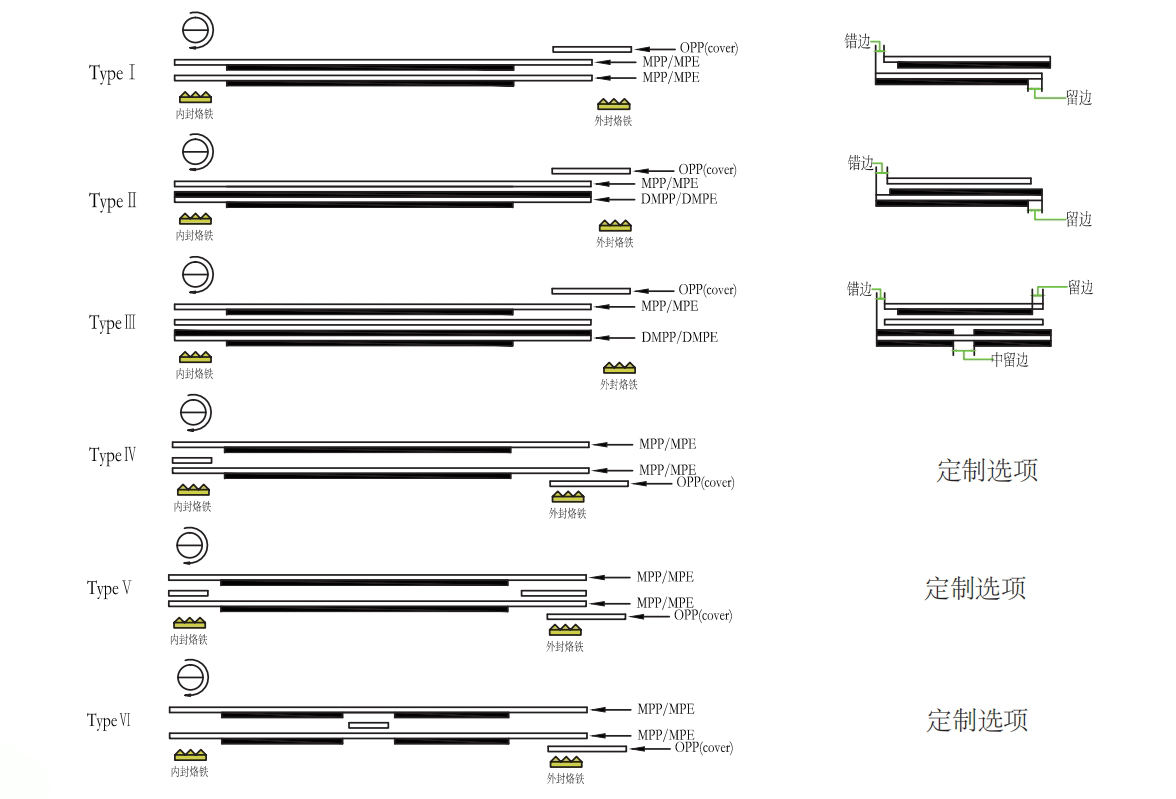

1. With the function of outsourcing and insertion, it can effectively solve the appearance problems of safety film, high square resistance, ultra-thin film and other capacitors, save metal film and improve product performance.
2. Double-drive winding structure maximizes production efficiency.
3. It has the function of automatic tightening of key-type diaphragm disc to improve operation efficiency and convenience.
4. The machine adopts AC servo and pneumatic tension control to improve product accuracy.
5. PLC and touch screen control, with capacity calculation, parameter storage, data reading function, to achieve intelligent operation.
6. Integral rack and main winding mechanism can improve seismic resistance and ensure the durability of accuracy.
7. Translational staggered edge adjusting mechanism ensures the accuracy of the tray after moving, and the operation is convenient.
8. It has the function of automatic wiring and directional pre-flattening. The maximum mandrels can reach 70 mm. It is suitable for ultra-thin capacitor production.

Technical Parameters of LV-FX Series Equipment

类别 category	项目 project				FX100L	FX150L
用膜尺寸 Film size	双卷材料宽度 Width of double roll material	mm			19-50	25-75
	单卷材料宽度（选配） Width of single roll material (optional)		mm		80	110
	金属薄膜材料厚度 Thickness of Metal Film Material μm				3-15(3μm以下需要提供材料调试)
	外包光膜厚度μm Thickness of cover film				10月15日
	金属薄膜用卷内/外径mm Inner/Outer Diameter of Coil for Metal Film				75/250
	外包光膜用卷内/外径mm Inner/Outer Diameter of Coil for Metal Film				40/75-250
	铝箔厚度 Aluminum foil thickness μm				15-20
	铝箔宽度 Aluminum foil width	mm			110	160
	铝箔内/外径 Inner/Outer Diameter of Aluminum Foil			mm	40/160

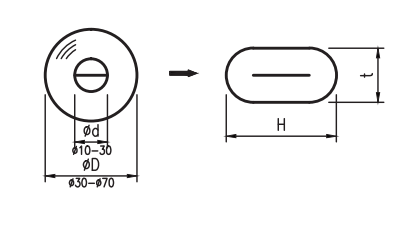

芯子尺寸 Elements size	标准卷针直径 Standard mandrels diameter	mm			10，12，14，16	12，16,20,25
	可选最大卷针直径 Optional maximum mandrels diameter		mm		30
	素子最大直径mm Maximum diameter of elements				70
设备基本参数 Basic parameters of equipment	主卷最高速度 Maximum speed of main volume				转速度7000rpm；线速度8000mm/s
	张力范围 Tension range	g			50-600	60-680
	压力范围 Pressure range	g			50-1600
	设备尺寸（长x宽x高）mm Equipment dimensions (L x W xH)				1880x1350x2200
	设备净重 Net weight of equipment	kg			1400-1600
	气源Mpa Gas source				0.5-0.6
	电源 Power Supply				AC 220V ±10% 50Hz 3.8Kw
