LV-EDFS Series Automatic Winding Machine for Capacitor

LV-EDFS Series Automatic Winding Machine for Capacitor

LV-EDFS Series Automatic Winding Machine for Capacitor

Automatic Winding Machine Characteristics 1. Double-sided removal of metal layer with double-sided metallization film. 2. With the function of outsourcing and insertion, it can effectively solve the capacitance appearance problems such as safety film, high square resistance, super-thin fil...

Submit request

Description

marker

Automatic Winding Machine Characteristics

1. Double-sided removal of metal layer with double-sided metallization film.
2. With the function of outsourcing and insertion, it can effectively solve the capacitance appearance problems such as safety film, high square resistance, super-thin film, save metal film and improve product performance.
3. Synchronized winding of double-drive gear transmission structure maximizes production efficiency and ensures the stability of transmission accuracy.
4. This machine adopts Siemens enhanced Smart PLC and touch screen control, with capacity calculation, parameter storage, data reading functions, to achieve intelligent operation.
5. Internal and external washing can adjust, shorten the length, save materials and improve efficiency.
6. Air guide mechanism can be added according to product requirements to effectively prevent material deviation and improve quality.
7. The machine can choose to add explosion-proof film cleaning mechanism according to product requirements.
8. Integral rack and main winding mechanism can improve the seismic resistance and ensure the accuracy and durability of the equipment.
9. Translational staggered side adjusting mechanism ensures the accuracy of the tray after moving and is convenient to operate.
10. The machine can be equipped with a key-type diaphragm disc automatic tightening mechanism, automatic core connection and core directional pre-pressing mechanism, and safety door.

Technical Parameters of LV-EDFS Series Equipment

类别
category

项目 project

EDFS30L

EDFS40L

EDFS60L

EDFS80L

EDFS100L

用膜尺寸
Film size

双卷材料宽度
Width of double roll material

mm

6月16日

9月22日

14-30

19-40

21-50

单卷材料宽度（选配）
Width of single roll material (optional)

mm

30

40

60

80

100

金属薄膜材料厚度
Thickness of Metal Film Material
μm

≥1.8

≥2.0

≥2.5

≥2.5

≥2.5

外包光膜厚度μm
Thickness of cover film

8月15日

金属薄膜用卷内/外径mm
Inner/Outer Diameter of Metal Film

75/240

75/260

外包光膜用卷内/外径mm
Inner/Outer Diameter of cover film

40/75-180

铝箔厚度
Aluminum foil thickness
μm

15-20

铝箔宽度
Aluminum foil width

mm

35

50

70

90

110

铝箔内/外径
Inner/Outer Diameter of Aluminum Foil

mm

40/160

芯子尺寸
Elements
size

标准卷针直径
Standard mandrels diameter

mm

2,2.5，3，4

2.5，3，4，5

3，4，5，64，5，6,85，6,8,10

可选最大卷针直径
Optional maximum mandrels diameter

mm

5

6

8

10月15日

10月15日

素子最大直径mm
Maximum diameter of elements

35

46

设备基本参数
Basic parameters of equipment

材料挂轴
Material hanging shaft

PC

10

主卷最高速度
Maximum speed of main volume

转速度9000rpm；线速度6000mm/s

张力范围
Tension range

g

20-120

30-180

50-400

压力范围
Pressure range

g

0-480

设备尺寸（长x宽x高）mm
Equipment dimensions (L x W xH)

1600x1100x1850

设备净重
Net weight of equipment

kg

730-800

气源Mpa
Gas source

0.5-0.55

电源
Power Supply

AC 220V ±10% 50Hz 2.5Kw

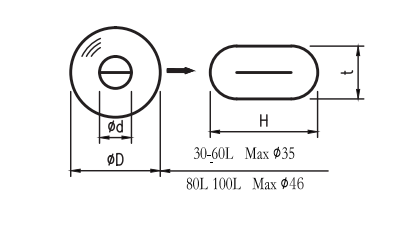

Drawing of Winding Range

LV-EDFS

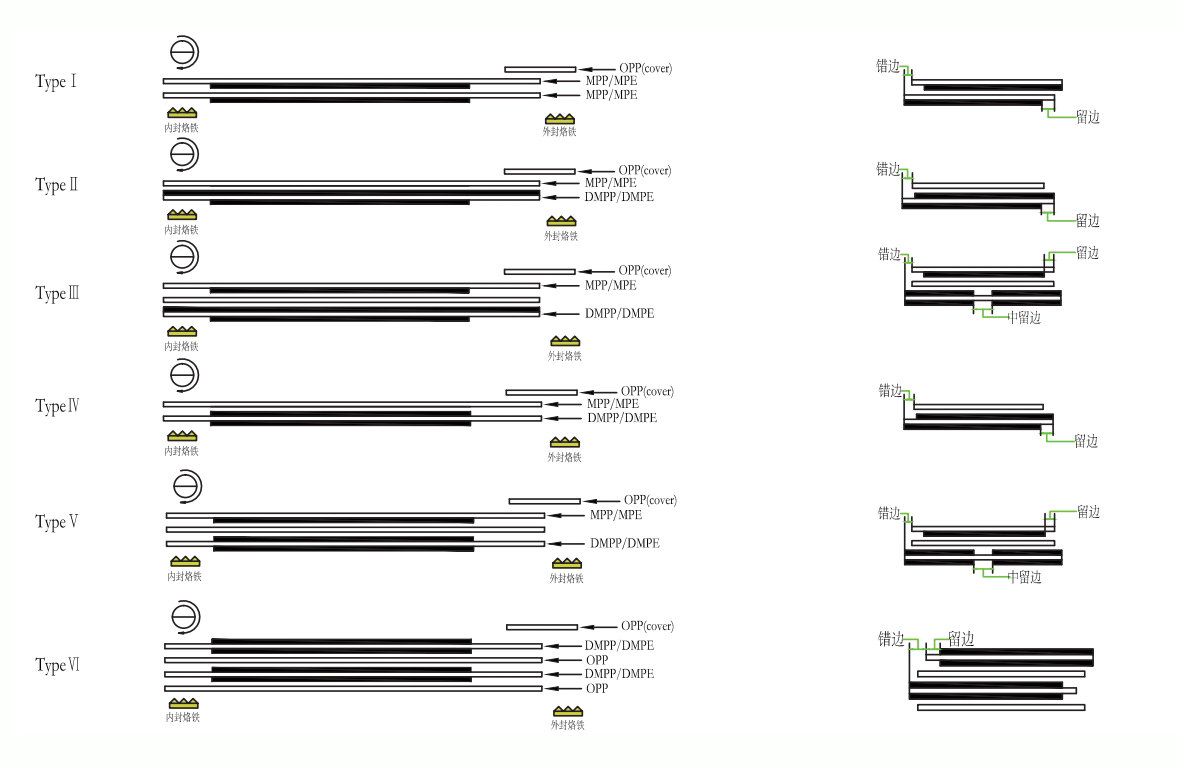

Drawing of Winding Structure

LV-EDFS Series Automatic Winding Machine for Capacitor
