LV-HM Series Automatic Winding Machine for Capacitor

Automatic Winding Machine Characteristics 1. This machine is controlled by Siemens PLC and touch screen. It has the functions of capacity calculation, parameter storage and parameter reading to realize humanized operation. 2. The whole machine is controlled by Panasonic AC servo system, an...

Submit request

Description

marker

Automatic Winding Machine Characteristics

1. This machine is controlled by Siemens PLC and touch screen. It has the functions of capacity calculation, parameter storage and parameter reading to realize humanized operation.
2. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the precision and compensate the tension when the speed is lowered.
3. It has the function of secondary heat seal. The time and pressure of
primary heat seal and secondary heat seal can be set separately, which is convenient for the later process.
4. Precision screw rod is used to effectively reduce the adjustment clearance, increase adjustable locking device, adjustable clearance and prevent the displacement of staggered edges.
5. The frame of the machine is of integral structure, which can effectively improve the accuracy and durability and greatly reduce the mechanical vibration by changing the lack of strength in multi-piece assembly.
6. The main reel seat of the machine adopts an integral tunneling structure, which avoids the loss of precision and the deviation of concentricity caused by multi-chip connection, and greatly improves the accuracy and stability after long-term use.

Technical Parameters of LV-HM Series Equipment

类别 category	项目 project		HM150L	HM170		HM170BL
用膜尺寸 Film size	双卷材料宽度 Width of double roll material	mm	25-75	30-85		30-85
	单卷材料宽度（选配） Width of single roll material (optional)	mm	80-150	90-150		90-150
	金属薄膜材料厚度 Thickness of Metal Film Material	μm	4月12日
	外包及中卷光膜厚度 Cover film and Separater Film Thickness	μm	12月25日
	金属薄膜用卷内/外径 Inner/Outer Diameter of Coil for Metal Film	mm	75/350
	外包及中卷光膜用卷内/外径 Coil inner/outer diameter for outsourcing and Separater Film	mm	75-250
	铝箔厚度 Aluminum foil thickness	μm	15-25
	铝箔宽度 Aluminum foil width	mm	210
	铝箔内/外径 Inner/Outer Diameter of Aluminum Foil	mm	40/160

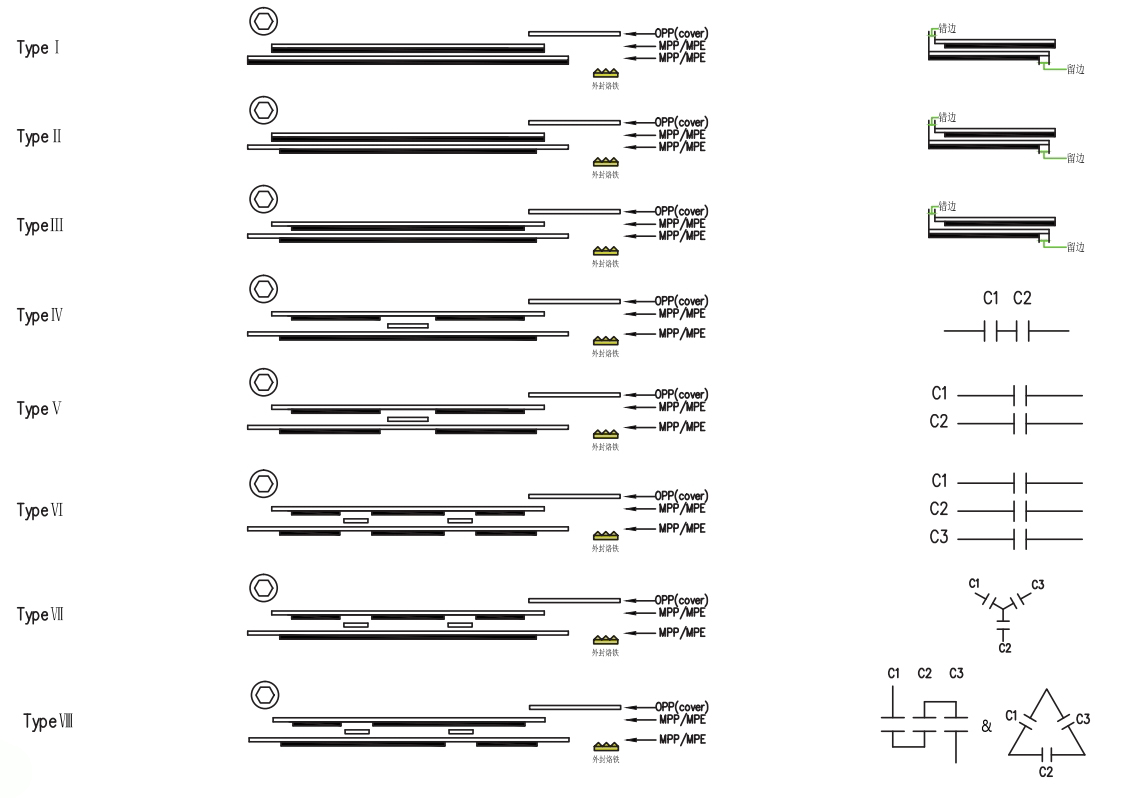

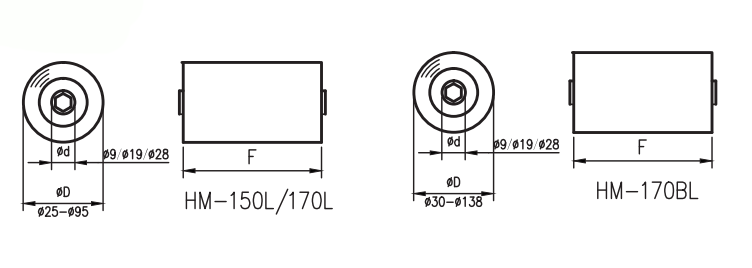

芯子尺寸 Elements size	标准六角芯棒外径 Standard hexagonal core outer diameter	mm	9
	最大六角芯棒外径 Maximum hexagonal core diameter	mm	19/28
	标准卷针六角对边 Hexagonal diagonal side of standard mandrels	mm	5
	最大卷针 maximum of mandrels	mm	9/13（选配）
	芯子外径 Elements diameter	mm	20-95	25-95		25-138
设备基本参数 Basic parameters of equipment	材料挂轴 Material hanging shaft	PC	8
	主卷最高速度 Maximum speed of main volume		转速度10000rpm；线速度15000mm/s
	张力范围 Tension range	g	50-1500
	压力范围 Pressure range	g	1000-10000
	设备尺寸（长x宽x高） Equipment dimensions (L x W xH)	mm	2390x1960x2250
	设备净重 Net weight of equipment	kg	2800		3300
	气源 Gas source	Mpa	0.5-0.6
	电源 Power Supply		AC 220V ±10% 50Hz 5.0Kw
