| Specifications | Applicable wire diameter (mil) | A(¡À0.01)
(mm) |
B(¡À0.01) (mm) | C(¡À0.01) (mm) | D(¡À0.01) (mm) |
| 153-4/175-4 | 4 | 0.12 | 0.20 | 0.07 | 0.29/0.25 |
| 153-5/175-5 | 5 | 0.16 | 0.28 | 0.09 | 0.39/0.28 |
| 153-6/175-6 | 6 | 0.17 | 0.30 | 0.10 | 0.46/0.3 |
| 153-8/175-8 | 8 | 0.23 | 0.40 | 0.15 | 0.71/038 |
| 153-10/175-10 | 10 | 0.31 | 0.50 | 0.19 | 0.64/0.48 |
| 153-12/175-12 | 12 | 0.37 | 0.61 | 0.23 | 0.91/0.58 |
| 153-15/175-15 | 15 | 0.47 | 0.76 | 0.29 | 1.07/0.73 |
| 153-20/175-20 | 20 | 0.62 | 1.02 | 0.38 | 1.42/0.96 |
¡ïThe product is made of special imported steel
¡ïForging and quenching for many times to prolong life
¡ïCustomized non-standard size
Product name: Wedge for aluminium wire bonding
Brand: China DOXO
Tolerance range: +-0.002
Series: 127153 127175
Specifications: 4mil 5mil 6mil 8mil 10mil 12mil 15mil 20mil
Function: Semiconductor aluminum wire welding equipment
Support: customized processing
Material: Tungsten Carbide

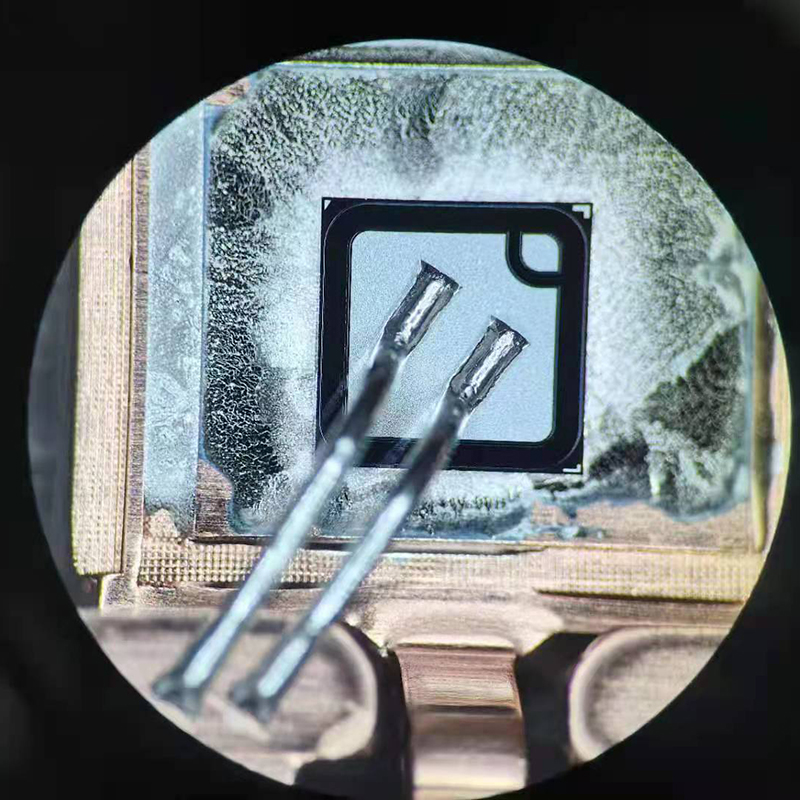

Scope of application: automotive electronics IGBT triode diode
Product advantages: high hardness, high grinding, long life, improve product yield, 1.2 million times
?
